Engine displacement
125
2
Model
TUONO
3
Year
2017
4
Trim
Tuono 4T E4 ABS
5
Parts Catalog
Crankcases I
6
Parts Diagram
Parts Catalog
Rear mudguard
by
Gear box - Gear assembly
Crankcases I
18
18
17
17
16
15
14
14
13
12
20
19
19
5
5
4
3
2
1
1
11
11
11
11
10
9
8
7
6
6
1
Carter
1A0058840B
$1 102,02 Unit Price incl. VAT
1
Carter
1A0058840A
$1 102,02 Unit Price incl. VAT
2
Radial ball bearing 15x42x13
485912
Not Available
3
JOINT
873086
$9,74 Unit Price incl. VAT
4
BAGUE ETANCHEITEE
847019
$1,63 Unit Price incl. VAT
5
ROULEMENT
82668R
$11,34 Unit Price incl. VAT
6
Cage á roul.
182015
$5,31 Unit Price incl. VAT
7
BAGUE
AP3FCN000247
$3,65 Unit Price incl. VAT
8
PIVOT DE CENTR.
484993
$0,16 Unit Price incl. VAT
9
DOUILLE
177442
$4,04 Unit Price incl. VAT
10
PIVOT MIX
847076
$0,67 Unit Price incl. VAT
11
Pin 6,5x9,5x15
239388
Not Available
12
VIS
828922
$0,38 Unit Price incl. VAT
13
RONDELLE
224664
$1,26 Unit Price incl. VAT
14
screw M6x60
432142
$0,19 Unit Price incl. VAT
15
COLLIER
873735
$1,48 Unit Price incl. VAT
16
BAGUE ETANCHEITEE
847075
$1,49 Unit Price incl. VAT
17
Cat.b red bushing half-shells
8580170002
Not Available
17
Cat.a blue bushing half-shells
8580170001
Not Available
18
Cat.b blue bushing half-shells
8580180002
Not Available
18
Cat.a red bushing half-shells
8580180001
Not Available
19
BOULON S03105700
031057
$0,08 Unit Price incl. VAT
20
RONDELLE
224664
$1,26 Unit Price incl. VAT

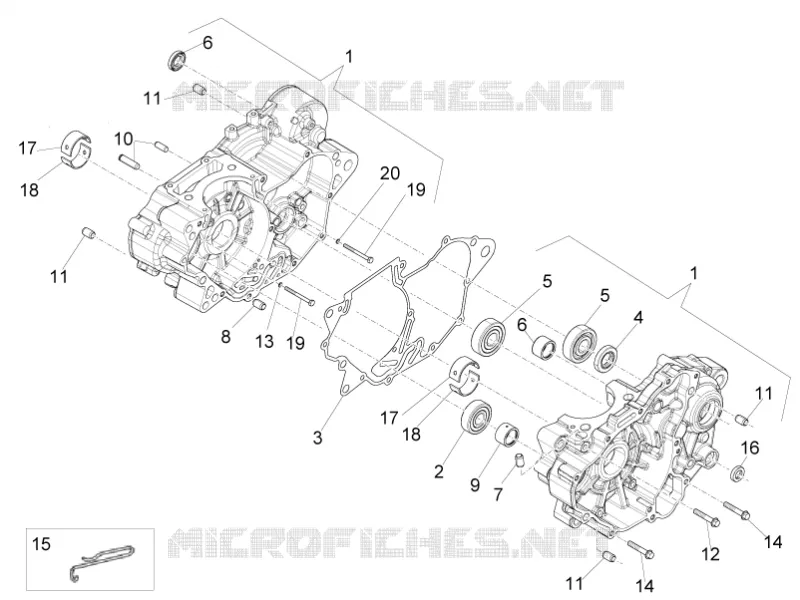

Find the detailed Crankcases I APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.
