1
Engine displacement
125
2
Model
RS4
3
Year
2016
4
Trim
RS4 125 4T
5
Parts Catalog
Crankcases I
6
Parts Diagram
Parts Catalog
Front brake caliper
by
Saddle
Crankcases I
20
19
19
18
18
17
17
16
15
14
14
13
12
11
11
11
11
10
9
8
7
6
6
5
5
4
3
2
1
1
1
Complete crankcase 1st cat.
8993115001
Not Available
1
Carter moteur
8993115002
$1 102,02 Unit Price incl. VAT
2
Radial ball bearing 15x42x13
485912
Not Available
3
JOINT
873086
$9,74 Unit Price incl. VAT
4
BAGUE ETANCHEITEE
847019
$1,63 Unit Price incl. VAT
5
ROULEMENT
82668R
$11,34 Unit Price incl. VAT
6
Cage á roul.
182015
$5,31 Unit Price incl. VAT
7
BAGUE
AP3FCN000247
$3,65 Unit Price incl. VAT
8
PIVOT DE CENTR.
484993
$0,16 Unit Price incl. VAT
9
DOUILLE
177442
$4,04 Unit Price incl. VAT
10
PIVOT MIX
847076
$0,67 Unit Price incl. VAT
11
Pin 6,5x9,5x15
239388
Not Available
12
VIS
828922
$0,38 Unit Price incl. VAT
13
RONDELLE
224664
$1,26 Unit Price incl. VAT
14
screw M6x60
432142
$0,19 Unit Price incl. VAT
15
COLLIER
873735
$1,48 Unit Price incl. VAT
16
BAGUE ETANCHEITEE
847075
$1,49 Unit Price incl. VAT
17
Cat.b red bushing half-shells
8580170002
Not Available
17
Cat.a blue bushing half-shells
8580170001
Not Available
18
Cat.b blue bushing half-shells
8580180002
Not Available
18
Cat.a red bushing half-shells
8580180001
Not Available
19
BOULON S03105700
031057
$0,08 Unit Price incl. VAT
20
RONDELLE
224664
$1,26 Unit Price incl. VAT

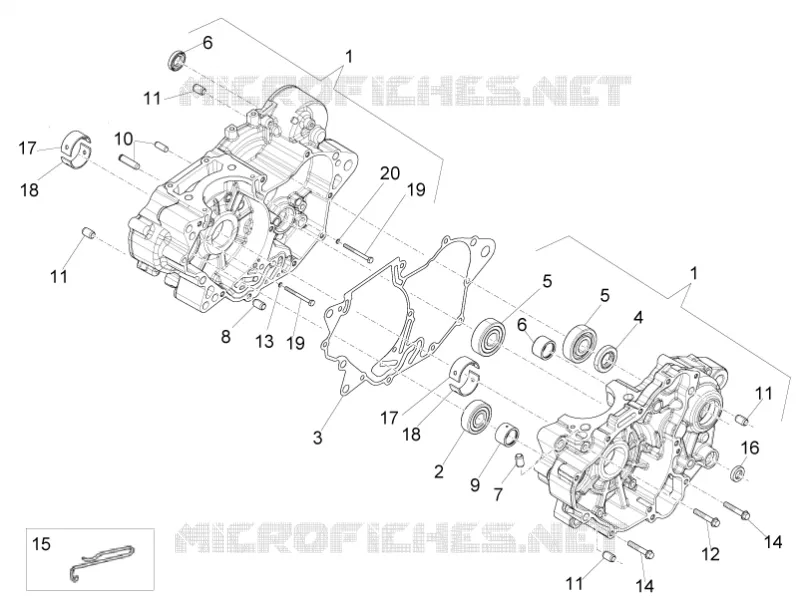

Find the detailed Crankcases I APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
