1
Engine displacement
300
2
Model
SPORT-CITY
3
Year
2009
4
Trim
Sport City Cube IE E3
5
Parts Catalog

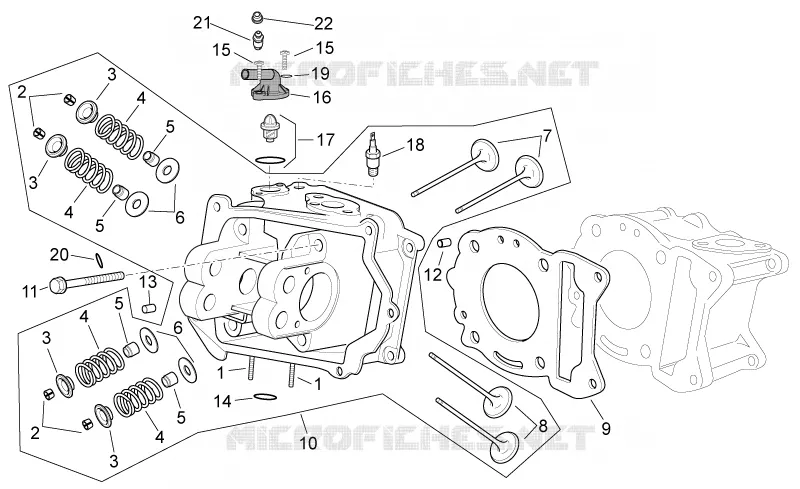

Cylinder head
6
Parts Diagram
Parts Catalog
Saddle unit
by
Throttle body
Cylinder head
22
21
20
19
18
17
16
15
15
14
13
12
11
10
9
8
7
6
6
5
5
5
5
4
4
4
4
3
3
3
3
2
2
1
1
1
Stud bolt M7
435629
$0,67 Unit Price incl. VAT
2
Valve half-cone
285846
$2,94 Unit Price incl. VAT
3
Upper cap
483914
$0,91 Unit Price incl. VAT
4
Spring
828480
$2,25 Unit Price incl. VAT
5
Valve gasket ring
436438
$1,34 Unit Price incl. VAT
6
Cup
AP8580069
Not Available
7
Intake valve
872999
Not Available
8
Exhaust valve
873009
Not Available
9
Cylinder head gasket 0,3 mm
831174
$5,82 Unit Price incl. VAT
9
Cylinder head gasket 0,3 mm
848168
Not Available
10
Cylinder head assy.
878330
$276,78 Unit Price incl. VAT
11
screw
844160
Not Available
12
Locating dowel Ø7,5x12
277916
$0,34 Unit Price incl. VAT
13
Locating dowel Ø11x10
478115
$0,24 Unit Price incl. VAT
14
Exhaust pipe gasket
480853
$4,89 Unit Price incl. VAT
15
Hex socket screw M5x20
845753
Not Available
16
Thermostat cover
876943
Not Available
17
Thermostat
82831R
Not Available
18
Temperature gauge
639000
Not Available
18
Temperature gauge
640485
Not Available
19
Gasket
297027
$1,10 Unit Price incl. VAT
20
O-ring
478184
Not Available
21
Bleed screw
845605
$3,21 Unit Price incl. VAT
22
Bleed valve cap
063435
$0,34 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
