Cooling system for APRILIA Tuono V4 Factory from 2016

Cooling system

1

Water cooler

B045753

Not Available

2

Fan, cpl.

622055

Not Available

3

Support radiateur

897775

$6,64 Unit Price incl. VAT

4

Vis bride

AP8152279

$0,51 Unit Price incl. VAT

5

Gr. bouchon cpl.

893954

$33,25 Unit Price incl. VAT

6

COLLIER SERR. TUBE

CM269609

$5,20 Unit Price incl. VAT

7

Eponge adhésive

AP8117033

$5,38 Unit Price incl. VAT

8

Tuyau radiateur

2B002204

$42,72 Unit Price incl. VAT

9

"Douille en ""T"" *"

AP8221023

$0,93 Unit Price incl. VAT

10

Groupe thermostat

856279

$112,07 Unit Price incl. VAT

11

Manchon

2B002207

$20,60 Unit Price incl. VAT

12

Tuy.thermos.-pompe

AP8144033

$49,51 Unit Price incl. VAT

13

Vis taraud pour plast. Inox

AP8150444

$0,17 Unit Price incl. VAT

14

Caoutchouc

AP8120030

$0,85 Unit Price incl. VAT

15

Tuyau radiateur

858488

$34,44 Unit Price incl. VAT

16

Collier

CM269603

$3,65 Unit Price incl. VAT

17

Tuy.thermostat-mot.

2B002208

$56,87 Unit Price incl. VAT

18

Vis bride

AP8152272

$0,08 Unit Price incl. VAT

19

Collier

893224

$1,92 Unit Price incl. VAT

20

Vis FHC

893514

$1,59 Unit Price incl. VAT

21

Rondelle

893823

$3,70 Unit Price incl. VAT

22

Entretoise

893513

$0,53 Unit Price incl. VAT

23

Rondelle

AP8150011

$0,25 Unit Price incl. VAT

24

Ecrou autofr. bas

AP8150204

$0,51 Unit Price incl. VAT

25

Temperature gauge

640485

Not Available

26

Tuyau moteur-collec.

2B002203

$45,50 Unit Price incl. VAT

27

Collier

CM269606

$3,65 Unit Price incl. VAT

28

Collecteur

856543

$35,21 Unit Price incl. VAT

29

Fuel pipe 5,5x10

AP8120952

Not Available

30

Bouchon

899642

$11,80 Unit Price incl. VAT

31

Expansion tank

899331

Not Available

32

"Douille en ""T"" *"

AP8221145

$3,65 Unit Price incl. VAT

33

Rondelle

AP8150158

$3,65 Unit Price incl. VAT

34

"Douille en ""T"""

AP8121728

$6,08 Unit Price incl. VAT

35

Douille;

AP8121991

$5,20 Unit Price incl. VAT

36

Guide-câble

AP8221150

$3,65 Unit Price incl. VAT

37

Douille filetée

895450

$1,49 Unit Price incl. VAT

38

Manchon

AP8144720

$6,30 Unit Price incl. VAT

39

Insert

898047

$1,47 Unit Price incl. VAT

40

Anneau d'arrêt rad.

AP8120573

$3,65 Unit Price incl. VAT

41

Tuyau

899881

$5,09 Unit Price incl. VAT

42

Collier

AP8101595

$0,32 Unit Price incl. VAT

43

Collier serr. Tube

AP8102520

$0,26 Unit Price incl. VAT

44

Collier

AP8101595

$0,32 Unit Price incl. VAT

45

RACCORD

856082

$35,84 Unit Price incl. VAT

46

Caoutchouc champignon;

AP8220488

$4,92 Unit Price incl. VAT

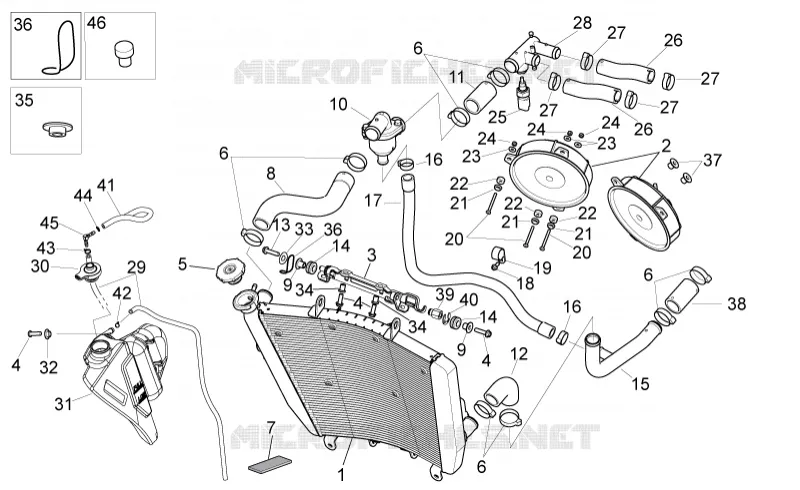

Find the detailed Cooling system APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
