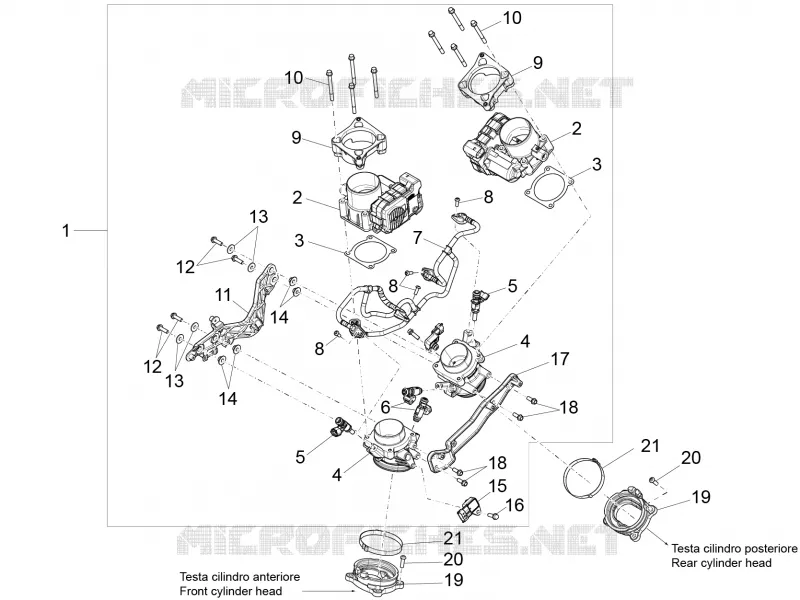

Throttle body
1
2
2
3
3
4
5
5
6
7
8
8
8
9
9
9
9
10
10
10
11
12
12
13
13
14
14
15
16
17
18
18
19
20
20
21
21
1
Throttle body cpl.
2B000633
Not Available
2
Throttle body
872230
Not Available
3
Gasket
872264
$1,85 Unit Price incl. VAT
4
Union
2A000021
$104,82 Unit Price incl. VAT
5
Injector kit complete
2A000042
$125,27 Unit Price incl. VAT
6
Injector kit complete
CM074706
$142,32 Unit Price incl. VAT
7
Pipe
2B000457
$356,12 Unit Price incl. VAT
8
Hex socket screw M5x14
B016455
$0,34 Unit Price incl. VAT
9
Air box support
B046196
$27,67 Unit Price incl. VAT
10
Screw w/ flange M6x65
828909
$0,29 Unit Price incl. VAT
11
Support bracket
2B000136
$13,53 Unit Price incl. VAT
12
Screw w/ flange M6x20
AP8152279
$0,51 Unit Price incl. VAT
13
Washer 6,6x18x1,6*
AP8150015
$0,16 Unit Price incl. VAT
14
T bush
AP8121728
$6,08 Unit Price incl. VAT
15
Air pressure sensor
642302
Not Available
16
Hex screw M6x20
018639
$0,16 Unit Price incl. VAT
17
Support bracket
876631
$26,41 Unit Price incl. VAT
18
Screw w/ flange M6x16
874555
$0,21 Unit Price incl. VAT
19
Intake fittings support
B013438
$128,80 Unit Price incl. VAT
20
Hex socket screw
834038
$0,29 Unit Price incl. VAT
21
Hose clip R96
B013505
$3,65 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
