Parts Catalog
Lights
6
Parts Diagram
Parts Catalog
Rear wheel - Rear caliper
by
Electrical system I
Lights
1
2
2
3
4
5
6
7
8
9
10
11
11
11
11
12
13
14
15
15
16
16
1
Headlight-uk-
AP8124615
Not Available
1
Headlight
AP8127287
Not Available
2
Lampholder
AP8224209
Not Available
3
Headlight wiring w/harness
AP8124409
Not Available
4
Taillight
AP8224318
Not Available
5
Taillight lens
AP8124949
Not Available
6
Taillight wiring harn.
AP8124594
Not Available
7
RH front turn indicator
AP8124516
Not Available
8
LH front turn indicator
AP8124517
Not Available
9
RH Turn indicator f.lens
AP8224213
$5,67 Unit Price incl. VAT
10
LH front turn indicator lens
AP8224210
Not Available
11
Vis
AP8150270
$3,65 Unit Price incl. VAT
12
Décalco inf. prot. feu
AP8147076
$2,30 Unit Price incl. VAT
13
RH shield
AP8224214
Not Available
14
Ecran G;
AP8224211
$4,32 Unit Price incl. VAT
15
screw
AP8225359
Not Available
16
Vis taraud pour plast. Inox
AP8150413
$0,08 Unit Price incl. VAT

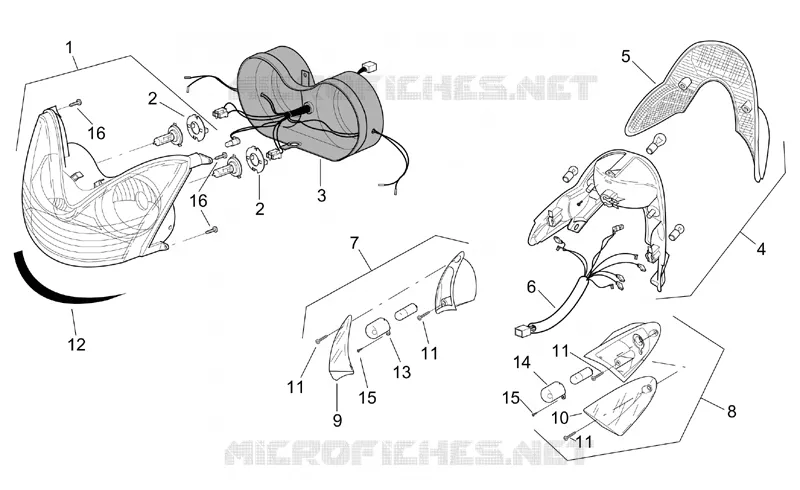

Find the detailed Lights APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.
