Engine displacement
250
2
Model
LEONARDO
3
Year
2002
4
Trim
Leonardo (engine Minarelli)
5
Parts Catalog
Transmission
6
Parts Diagram
Parts Catalog
Ignition unit
by
Clutch
Transmission
1
2
3
3
4
4
5
6
7
8
9
10
11
12
13
14
15
16
17
1
Intermediate gear
AP8552125
Not Available
2
Gear
AP8552126
Not Available
3
Washer
AP8552127
Not Available
4
Roller bearing
AP8552128
Not Available
5
Drive shaft
AP8552129
Not Available
6
Gear
AP8552130
Not Available
7
Circlip
AP8552131
Not Available
8
Washer
AP8552132
Not Available
9
Ball bearing
AP8552133
Not Available
10
Bearing
AP8552134
Not Available
11
Oil seal
AP8552135
Not Available
12
Ball bearing
AP8552136
Not Available
13
Drive shaft
AP8552137
Not Available
14
Bearing
AP8552138
Not Available
15
Oil seal
AP8552139
Not Available
16
Belleville spring
AP8552140
Not Available
17
Belleville spring
AP8552141
Not Available

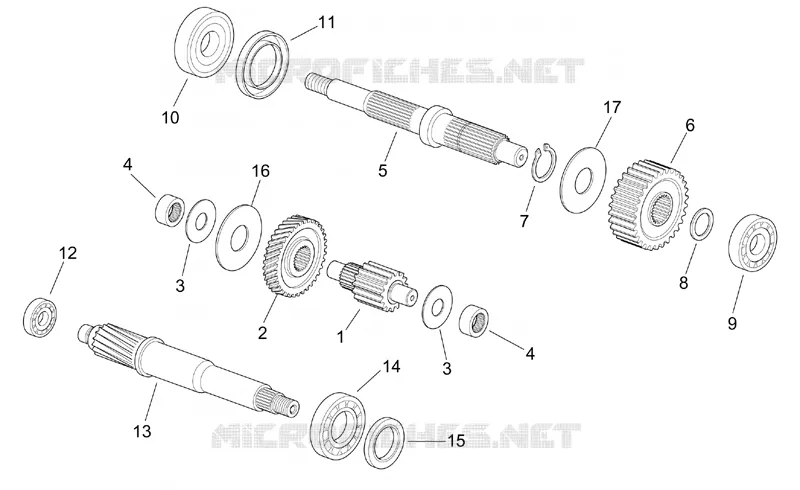

Find the detailed Transmission APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
