Parts Catalog
Handlebar - Controls
6
Parts Diagram
Parts Catalog
Rear master cylinder
by
Water cooler
Handlebar - Controls
1
2
3
4
5
5
6
7
8
9
10
11
12
13
14
15
16
17
17
18
18
19
19
20
21
22
22
1
RH rearview mirror
AP8102866
Not Available
2
LH rearview mirror
AP8102867
Not Available
3
Steering plate, gray
AP8158560
Not Available
4
Handlebar plate plug
AP8118551
Not Available
5
Vis
AP8150046
$3,65 Unit Price incl. VAT
6
Guidon;
AP8118483
$83,22 Unit Price incl. VAT
7
Vis guidon
AP8150088
$3,65 Unit Price incl. VAT
8
Ecrou autobloqu.
AP8152301
$0,59 Unit Price incl. VAT
9
Rondelle
AP8150020
$0,08 Unit Price incl. VAT
10
Vis bride
AP8152292
$3,65 Unit Price incl. VAT
11
Ecrou autobloqu.
AP8152300
$0,34 Unit Price incl. VAT
12
Bouchon
AP8104546
$5,38 Unit Price incl. VAT
13
Bouton démarrage
AP8124208
$11,69 Unit Price incl. VAT
14
Lights selector
AP8124622
Not Available
15
Poussoir clignotants
AP8212767
$17,07 Unit Price incl. VAT
16
Bouton avertisseur
AP8124209
$10,76 Unit Price incl. VAT
17
Vis taraud
AP8150460
$3,65 Unit Price incl. VAT
18
Rondelle
AP8150011
$0,25 Unit Price incl. VAT
19
Protection air guidon;
AP8139864
$0,50 Unit Price incl. VAT
20
RH mirror rubber
AP8144135
Not Available
21
LH mirror rubber
AP8144136
Not Available
22
RH+LH rear mirror plug
AP8148433
Not Available

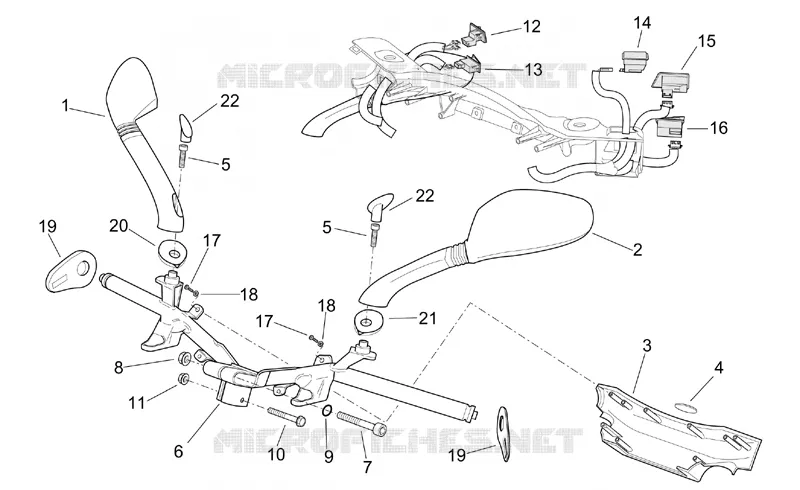

Find the detailed Handlebar - Controls APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.
