Engine displacement
250
2
Model
LEONARDO
3
Year
2002
4
Trim
Leonardo (engine Minarelli)
5
Parts Catalog
Fuel tank
6
Parts Diagram
Parts Catalog
Fuel level sensor
by
Air box
Fuel tank
1
2
3
4
5
6
7
7
8
8
9
10
10
11
11
11
12
12
13
13
13
1
Fuel tank
AP8139315
Not Available
2
Fuel tank gasket
AP8120917
Not Available
3
Pompe essence
AP8102408
$157,21 Unit Price incl. VAT
4
Fuel pump support
AP8139728
Not Available
5
Fuel filter
AP8102456
Not Available
6
Rondelle
AP8150015
$0,16 Unit Price incl. VAT
7
Ecrou autobloqu.
AP8152299
$0,34 Unit Price incl. VAT
8
Collier
AP8201358
$0,34 Unit Price incl. VAT
9
Tuyau
AP8144232
$2,03 Unit Price incl. VAT
10
Tuyau;
AP8144205
$4,38 Unit Price incl. VAT
11
Vis bride
AP8152279
$0,51 Unit Price incl. VAT
12
"Douille en ""T"""
AP8121728
$6,08 Unit Price incl. VAT
13
Collier
AP8201358
$0,34 Unit Price incl. VAT

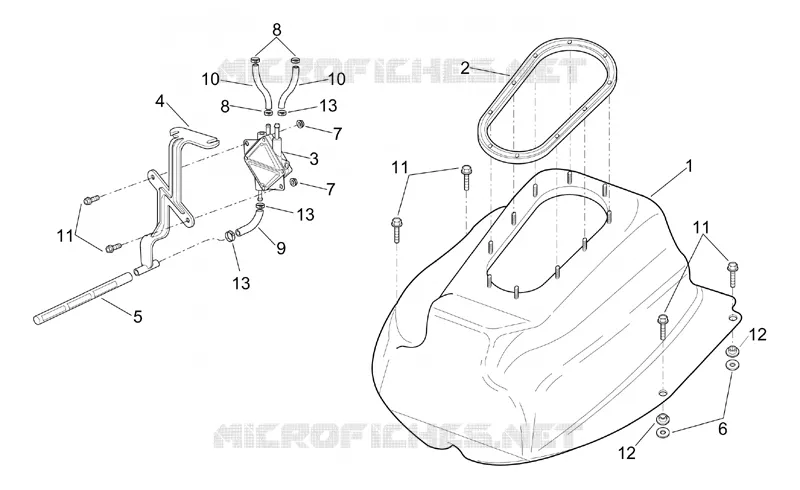

Find the detailed Fuel tank APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.
