1
Engine displacement
250
2
Model
LEONARDO
3
Year
2002
4
Trim
Leonardo (engine Minarelli)
5
Parts Catalog
Front master cilinder
6
Parts Diagram
Parts Catalog
Dashboard
by
Rear master cylinder
Front master cilinder
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
1
Front master cilinder
AP8113708
Not Available
2
H.bars anti.v weight
AP8202188
$5,38 Unit Price incl. VAT
3
Brake lever
AP8218480
Not Available
4
Vis bride
AP8152283
$0,32 Unit Price incl. VAT
5
Throttle cable
AP8114368
Not Available
6
Pump revision kit
AP8213464
Not Available
7
Tube frein AV
AP8113707
$38,76 Unit Price incl. VAT
8
Cavalier levier frein
AP8113637
$15,22 Unit Price incl. VAT
9
Vis calotte
AP8213299
$3,65 Unit Price incl. VAT
10
Hublot pompe frein
AP8213455
$16,91 Unit Price incl. VAT
11
Couvercle pompe;
AP8249191
$61,48 Unit Price incl. VAT
12
Lever pin cpl.
AP8218483
Not Available
13
Vis couvercle pompe
AP8213400
$3,65 Unit Price incl. VAT
14
Handgrip pair, grey
AP8118606
Not Available
15
Stop switch
AP8124818
Not Available
16
Rondelle
AP8113004
$0,34 Unit Price incl. VAT
17
Vis tuyau huile
AP8113003
$3,65 Unit Price incl. VAT
18
Throttle w/out hand grip
AP8118548
Not Available

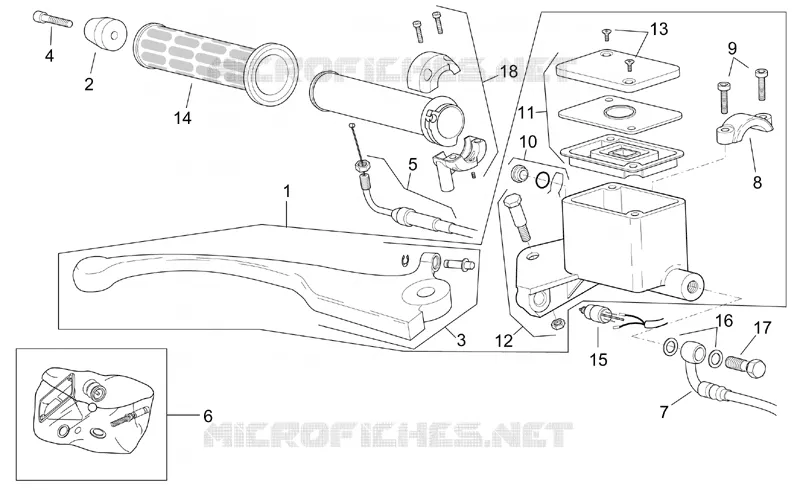

Find the detailed Front master cilinder APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.
