Engine displacement
250
2
Model
LEONARDO
3
Year
2002
4
Trim
Leonardo (engine Minarelli)
5
Parts Catalog
Front fork II
6
Parts Diagram
Parts Catalog
Front fork I
by
Connecting rod
Front fork II
1
2
2
3
3
4
4
5
5
6
6
7
7
8
9
10
11
11
12
12
13
14
15
16
17
1
Sleeve
AP8123766
Not Available
1
Sleeve
AP8163484
Not Available
1
Tige droite;
AP8163030
$289,42 Unit Price incl. VAT
2
Tampon de fond
AP8163289
$6,30 Unit Price incl. VAT
2
Tampon de fond;
AP8123701
$13,53 Unit Price incl. VAT
2
Tampon de fond
AP8123765
$6,30 Unit Price incl. VAT
3
Dust cover
AP8123767
$7,23 Unit Price incl. VAT
3
Dust cover
AP8203258
Not Available
3
Pare-poussière
AP8163298
$6,38 Unit Price incl. VAT
4
Stop ring
AP8163297
Not Available
4
Stop ring
AP8123704
Not Available
4
Bague de butée;
AP8123921
$3,65 Unit Price incl. VAT
5
Joint spi
AP8123769
$8,65 Unit Price incl. VAT
5
Joint spi
AP8163296
$5,53 Unit Price incl. VAT
5
Gasket ring
AP8103392
Not Available
6
Cup
AP8123705
Not Available
6
Oil seal washer
AP8123909
Not Available
6
Oil seal washer
AP8163295
$3,65 Unit Price incl. VAT
7
Douille de coulissement;
AP8123910
$6,30 Unit Price incl. VAT
7
Douille de coulissement;
AP8203447
Not Available
7
Bush
AP8163294
Not Available
8
RH sleeve
AP8123922
Not Available
8
RH sleeve
AP8163488
Not Available
9
LH sleeve
AP8123923
Not Available
9
LH sleeve
AP8163487
Not Available
10
Vis;
AP8223054
$3,65 Unit Price incl. VAT
10
Vis
AP8203796
$5,20 Unit Price incl. VAT
10
screw
AP8123920
Not Available
11
Seal washer
AP8163435
Not Available
11
Rondelle étanchéité
AP8203572
$3,65 Unit Price incl. VAT
11
Washer
AP8203794
Not Available
12
Vis
AP8163285
$3,65 Unit Price incl. VAT
12
Screw M8x30
AP8123774
Not Available
12
Screw M8x30
AP8203570
Not Available
13
Vis bride
AP8152298
$0,21 Unit Price incl. VAT
14
Speedometer cable guide
AP8121340
Not Available
15
Sleeve
AP8123766
Not Available
15
Sleeve
AP8163484
Not Available
15
Tige gauche;
AP8163031
$289,42 Unit Price incl. VAT
16
RH sleeve cpl.
AP8163032
Not Available
17
LH sleeve cpl.
AP8163033
Not Available

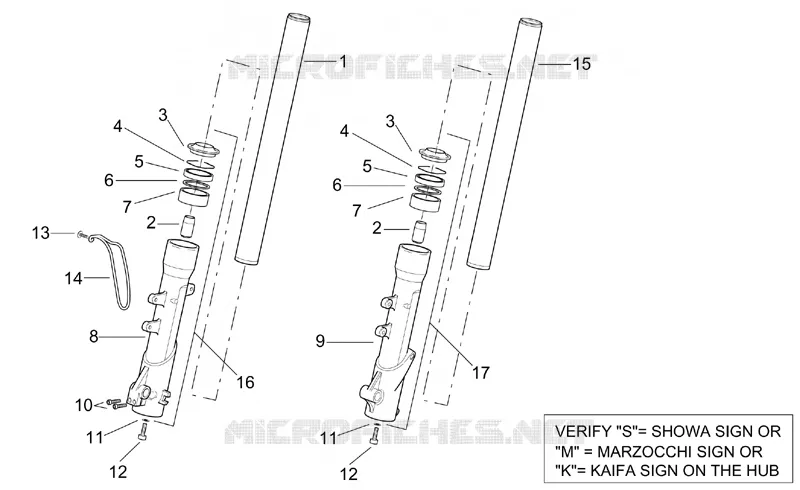

Find the detailed Front fork II APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
