Parts Catalog
Front body - Front fairing
6
Parts Diagram
Parts Catalog
Rear shock absorber
by
Front body - Dashboard
Front body - Front fairing
1
2
3
3
3
4
4
5
6
7
8
9
10
1
Windscreen
AP8158463
Not Available
1
Windscreen
AP8158464
Not Available
2
Front fairing, black
AP8158649
Not Available
2
Windshield, blue
AP8158526
Not Available
2
Windshield, grey
AP8158547
Not Available
2
Windshield, grey
AP8168682
Not Available
2
Windshield, red
AP8158708
Not Available
2
Windshield, red
AP8168691
Not Available
2
Windshield, blue
AP8178318
Not Available
3
Vis
AP8152334
$3,65 Unit Price incl. VAT
4
Caoutchouc avec insert
AP8120531
$6,30 Unit Price incl. VAT
5
Vis
AP8152270
$3,70 Unit Price incl. VAT
6
Windshield support grey
AP8168690
Not Available
6
Windshield support red
AP8168698
Not Available
6
Windshield support
AP8158330
Not Available
7
Rivet en plastique
AP8102671
$0,16 Unit Price incl. VAT
8
Anneau pare-pouss.avant
AP8120622
$3,65 Unit Price incl. VAT
9
RH windshield support
AP8134841
Not Available
10
LH windshield support
AP8134843
Not Available

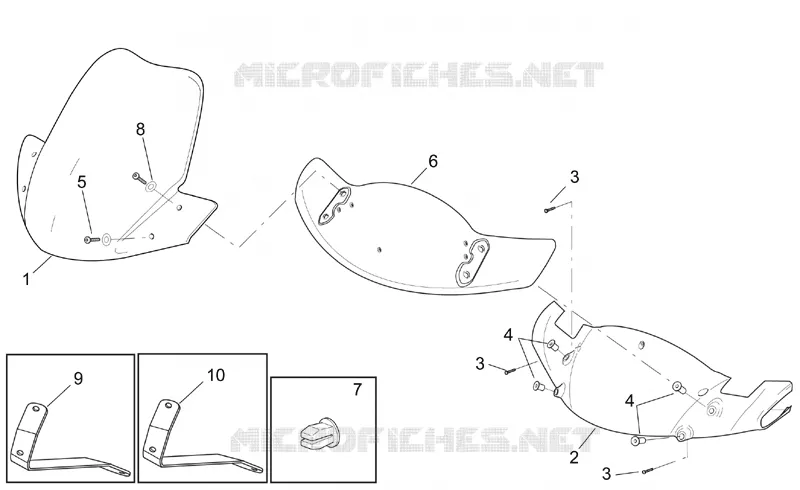

Find the detailed Front body - Front fairing APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.
