1
Engine displacement
300
2
Model
LEONARDO
3
Year
2003
4
Trim
Leonardo (engine Minarelli)
5
Parts Catalog
Exhaust unit
6
Parts Diagram
Parts Catalog
Secondary air
by
Front wheel
Exhaust unit
1
2
3
4
4
4
5
5
6
7
8
9
9
10
11
12
13
14
15
16
17
18
18
19
20
21
22
23
24
25
26
27
1
Silencer
AP8119750
Not Available
1
Silencer
AP8119746
Not Available
2
Exaust pipe support cpl.
AP8146682
Not Available
3
Vis bride
AP8152342
$9,41 Unit Price incl. VAT
4
Rondelle thermofuge
AP8144064
$2,95 Unit Price incl. VAT
5
Caoutchouc
AP8144065
$5,38 Unit Price incl. VAT
6
Nut M8
AP8150334
Not Available
7
Prot. pot chromé
AP8119424
$54,75 Unit Price incl. VAT
8
Vis
AP8150392
$2,25 Unit Price incl. VAT
9
Rondelle
AP8150020
$0,08 Unit Price incl. VAT
10
Joint pot d'échappement
AP8119471
$1,55 Unit Price incl. VAT
11
Entretoise
AP8120253
$3,65 Unit Price incl. VAT
12
Bague;
AP8121334
$3,65 Unit Price incl. VAT
13
Entretoise
AP8152348
$3,65 Unit Price incl. VAT
14
Silentbloc;
AP8144147
$4,60 Unit Price incl. VAT
15
Ball bearing
AP8110085
Not Available
16
Pare-poussière
AP8110086
$5,38 Unit Price incl. VAT
17
Disp.prot.poussière int.
AP8110087
$2,13 Unit Price incl. VAT
18
Rondelle
AP8150018
$0,34 Unit Price incl. VAT
19
Vis
AP8150277
$0,42 Unit Price incl. VAT
20
Vis
AP8150196
$3,65 Unit Price incl. VAT
21
Entretoise roue arrière
AP8152349
$1,98 Unit Price incl. VAT
22
Rondelle élastique courbe
AP8150376
$0,08 Unit Price incl. VAT
23
Ext.exhaust pipe protection
AP8119489
Not Available
24
Stainless washer 4,3x8
AP8119518
Not Available
25
Screw
AP8119490
Not Available
26
Rondelle élastique courbe
AP8150292
$0,34 Unit Price incl. VAT
27
Vis
AP8150046
$3,65 Unit Price incl. VAT

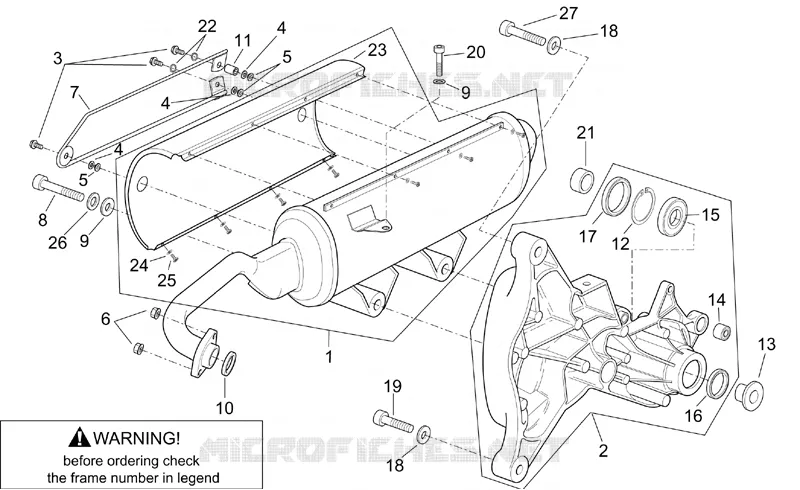

Find the detailed Exhaust unit APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
