1
Engine displacement
250
2
Model
LEONARDO
3
Year
2002
4
Trim
Leonardo (engine Minarelli)
5
Parts Catalog
Crank-case
6
Parts Diagram
Parts Catalog
Engine
by
Clutch side cover
Crank-case
1
2
3
3
3
3
4
4
5
6
6
7
8
8
8
9
10
11
11
11
11
11
12
13
14
15
15
16
17
18
19
20
21
22
23
1
LH Carter
AP8552192
Not Available
1
LH Carter
AP8555007
Not Available
2
Stud bolt
AP8552015
Not Available
3
O-ring
AP8552016
Not Available
4
Washer
AP8552017
Not Available
5
Circlip
AP8552018
Not Available
6
Spacer
AP8552019
Not Available
7
Silent-block, crankcase
AP8206129
Not Available
8
Screw w/ flange
AP8552021
Not Available
9
Oil filler plug
AP8206475
$5,53 Unit Price incl. VAT
10
O-ring D13,3x2,4
AP8206482
Not Available
11
Pin D.10x14-INT.D.8,5
AP8502807
Not Available
12
Screw w/ flange
AP8552022
Not Available
13
pipe
AP8552023
Not Available
14
Oil seal
AP8552024
Not Available
15
Spacer
AP8552025
Not Available
16
Screw w/ flange
AP8552026
Not Available
17
Gasket 8,2x15x1,2
AP8206488
$3,65 Unit Price incl. VAT
18
Cover
AP8552027
Not Available
19
screw
AP8552028
Not Available
20
Washer
AP8552029
Not Available
21
Screw w/ flange
AP8552030
Not Available
22
90° union
AP8552031
Not Available
23
RH Carter
AP8552193
Not Available
23
RH Carter
AP8555008
Not Available

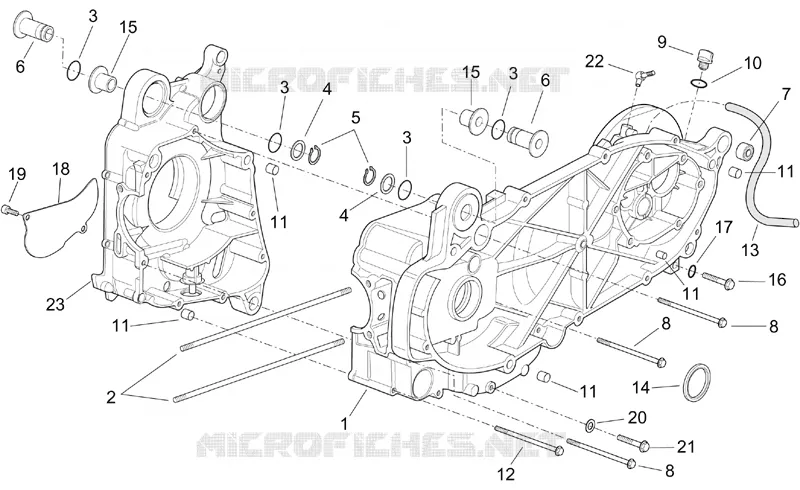

Find the detailed Crank-case APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
