Parts Catalog
Central body - Underpanel
6
Parts Diagram
Parts Catalog
Central body - Panel
by
Central body - Tunnel
Central body - Underpanel
1
2
3
4
5
6
7
7
1
RH side panel, red
AP8168693
Not Available
1
RH side panel, grey
AP8158725
Not Available
1
RH side panel, blue
AP8158728
Not Available
1
RH side panel, grey
AP8158723
Not Available
1
RH side panel, grey
AP8168684
Not Available
1
RH side panel, c.red
AP8158715
Not Available
1
RH side panel, black
AP8158734
Not Available
2
LH side panel, grey
AP8158724
Not Available
2
LH side panel, grey
AP8168685
Not Available
2
LH side panel, black
AP8158733
Not Available
2
LH side panel, c.red
AP8158711
Not Available
2
LH side panel, red
AP8168694
Not Available
2
LH side panel, blue
AP8158727
Not Available
3
Clip pour vis taraud
AP8201763
$3,65 Unit Price incl. VAT
4
Vis à tête bombée à six pans creux
AP8152267
$0,34 Unit Price incl. VAT
5
Rondelle
AP8150248
$0,16 Unit Price incl. VAT
6
Vis
AP8150425
$3,65 Unit Price incl. VAT
7
Rondelle
AP8150382
$0,16 Unit Price incl. VAT

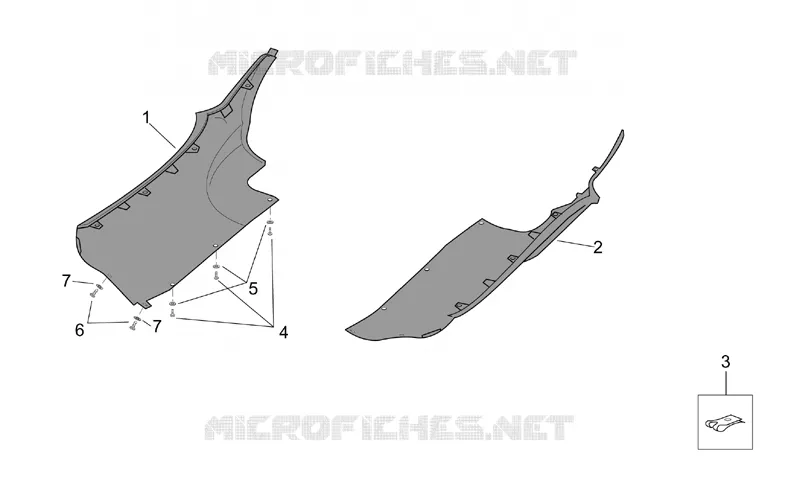

Find the detailed Central body - Underpanel APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.
