1
Engine displacement
250
2
Model
LEONARDO
3
Year
2002
4
Trim
Leonardo (engine Minarelli)
5
Parts Catalog
Carburettor II
6
Parts Diagram
Parts Catalog
Carburettor I
by
Carburettor III
Carburettor II
1
2
2
3
4
5
6
7
8
9
10
11
12
1
Diaphragm cpl.
AP8106990
Not Available
2
screw
AP8122598
Not Available
2
screw
AP8176018
Not Available
3
Gasket
AP8122485
Not Available
3
Gasket
AP8176008
Not Available
4
screw
AP8176009
Not Available
4
screw
AP8122593
Not Available
5
O-ring
AP8176021
Not Available
5
O-ring
AP8122544
Not Available
6
screw
AP8176017
Not Available
6
screw
AP8122597
Not Available
7
screw
AP8122592
Not Available
7
screw
AP8176010
Not Available
8
screw
AP8106998
Not Available
9
Sensor
AP8106999
Not Available
10
Diaphragm cover
AP8176026
Not Available
11
Diaphragm+cover
AP8122479
Not Available
12
Spring
AP8122619
Not Available

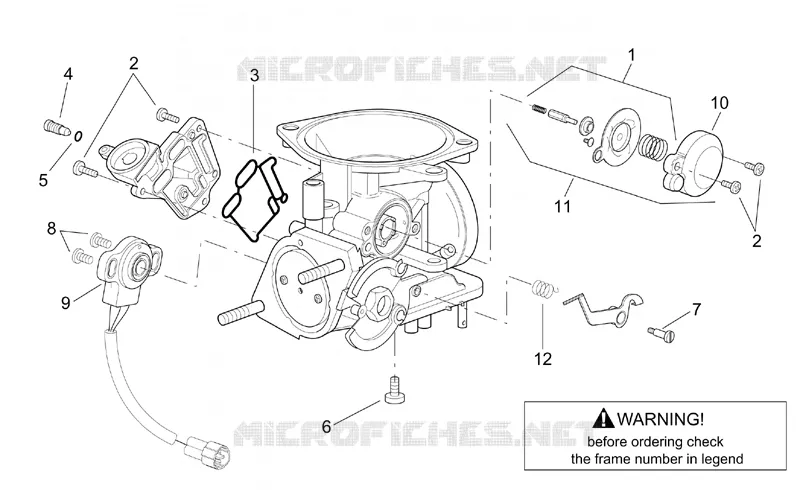

Find the detailed Carburettor II APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
