1
Engine displacement
250
2
Model
LEONARDO
3
Year
2002
4
Trim
Leonardo (engine Minarelli)
5
Parts Catalog
Rear body - Plate holder
6
Parts Diagram
Parts Catalog
Rear body - Rear fairing
by
Dashboard

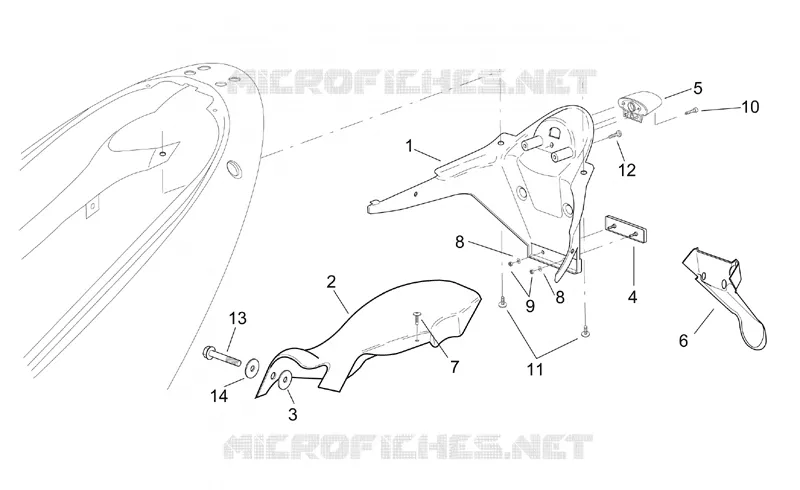

Rear body - Plate holder
1
2
3
4
5
6
7
8
8
9
10
11
12
13
14
1
Number plate holder, grey
AP8168689
Not Available
1
Number plate holder, red
AP8168697
Not Available
1
Number plate holder, grey
AP8126967
Not Available
1
Number plate holder, red
AP8158714
Not Available
1
Number plate holder, black
AP8158652
Not Available
1
Number plate holder, blue
AP8158531
Not Available
1
Number plate holder
AP8156124
Not Available
2
Rear mudguard, grey
AP8126888
Not Available
3
"Douille en ""T"""
AP8120508
$3,65 Unit Price incl. VAT
4
Catadioptre feu arrière
AP8112916
$6,35 Unit Price incl. VAT
5
Number-plate light
AP8124367
Not Available
6
Jupe anti-écl.AR gr.;
AP8126885
$3,73 Unit Price incl. VAT
7
Screw w/ flange M5x12
AP8152302
Not Available
8
Rondelle
AP8150011
$0,25 Unit Price incl. VAT
9
Ecrou autofr. bas
AP8150204
$0,51 Unit Price incl. VAT
10
Vis taraud
AP8150460
$3,65 Unit Price incl. VAT
11
Vis bride
AP8152246
$0,27 Unit Price incl. VAT
12
Vis taraud pour plast. Inox
AP8150413
$0,08 Unit Price incl. VAT
13
Vis bride
AP8152291
$0,85 Unit Price incl. VAT
14
Rondelle
AP8150018
$0,34 Unit Price incl. VAT

Find the detailed Rear body - Plate holder APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
