Engine displacement
250
2
Model
LEONARDO
3
Year
2002
4
Trim
Leonardo (engine Minarelli)
5
Parts Catalog
Rear body - Rear fairing
6
Parts Diagram
Parts Catalog
Saddle and helmet compartment
by
Rear body - Plate holder
Rear body - Rear fairing
1
2
3
4
5
5
6
6
7
7
8
1
Rear fairing, red
AP8158716
Not Available
1
Rear fairing, black
AP8158653
Not Available
1
Rear fairing, grey
AP8168686
Not Available
1
Rear fairing, grey
AP8158546
Not Available
1
Rear fairing, grey
AP8178311
Not Available
1
Rear fairing, blue
AP8158532
Not Available
1
Rear fairing, blue
AP8178320
Not Available
1
Rear fairing, red
AP8168695
Not Available
2
Couvercle poignée;
AP8168688
$2,90 Unit Price incl. VAT
2
Handle cover
AP8158335
Not Available
3
Pillion grab bar, blue
AP8178321
Not Available
3
Pillion grab bar, red
AP8168696
Not Available
3
Pillion grab bar, grey
AP8168687
Not Available
3
Pillion grab bar, grey
AP8178324
Not Available
3
Pillion grab bar, grey
AP8178325
Not Available
3
Pillion grab bar, black
AP8158651
Not Available
3
Pillion grab bar, blue
AP8158554
Not Available
3
Pillion grab bar, grey
AP8158334
Not Available
3
Pillion grab bar, red
AP8158713
Not Available
4
Screw w/ flange M5x12
AP8152302
Not Available
5
Vis
AP8150277
$0,42 Unit Price incl. VAT
6
Vis
AP8150425
$3,65 Unit Price incl. VAT
7
Rondelle
AP8150382
$0,16 Unit Price incl. VAT
8
Vis taraud pour plast. Inox
AP8150413
$0,08 Unit Price incl. VAT

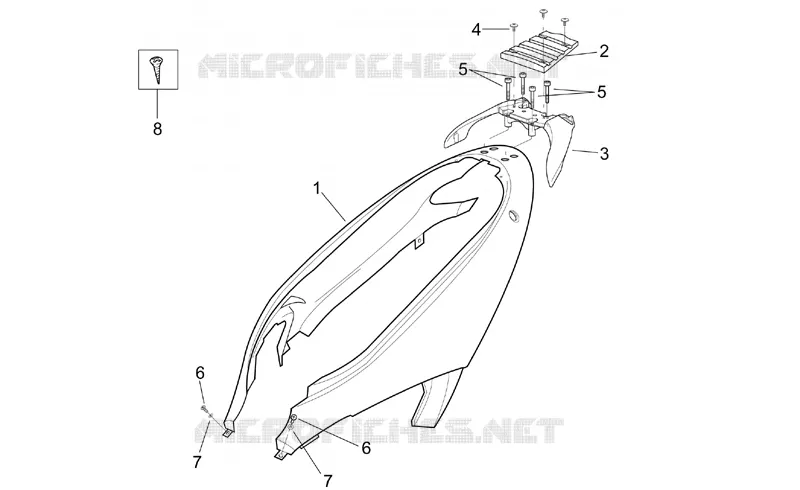

Find the detailed Rear body - Rear fairing APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
