Engine displacement
250
2
Model
LEONARDO
3
Year
2002
4
Trim
Leonardo (engine Minarelli)
5
Parts Catalog
Rear master cylinder
6
Parts Diagram
Parts Catalog
Front master cilinder
by
Handlebar - Controls
Rear master cylinder
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
1
Rear master cylinder
AP8113710
Not Available
2
H.bars anti.v weight
AP8202188
$5,38 Unit Price incl. VAT
3
Brake lever
AP8218480
Not Available
4
Vis bride
AP8152283
$0,32 Unit Price incl. VAT
5
Couvercle pompe;
AP8249191
$61,48 Unit Price incl. VAT
6
Vis couvercle pompe
AP8213400
$3,65 Unit Price incl. VAT
7
Lever pin cpl.
AP8218483
Not Available
8
Hublot pompe frein
AP8213455
$16,91 Unit Price incl. VAT
9
Vis calotte
AP8213299
$3,65 Unit Price incl. VAT
10
Stop switch
AP8124818
Not Available
11
Cavalier levier frein
AP8113637
$15,22 Unit Price incl. VAT
12
Rear brake hose
AP8113711
Not Available
13
Pump revision kit
AP8213464
Not Available
14
Rondelle
AP8113004
$0,34 Unit Price incl. VAT
15
Vis tuyau huile
AP8113003
$3,65 Unit Price incl. VAT
16
Handgrip pair, grey
AP8118606
Not Available

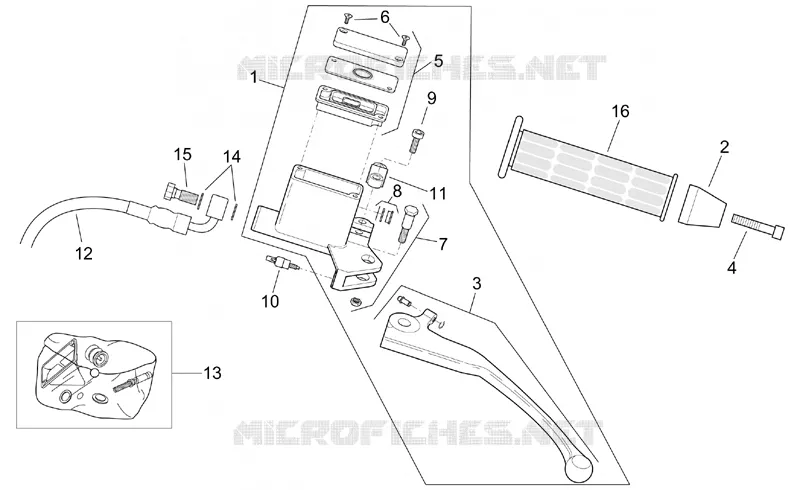

Find the detailed Rear master cylinder APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.
