1
Engine displacement
250
2
Model
LEONARDO
3
Year
2002
4
Trim
Leonardo (engine Minarelli)
5
Parts Catalog
Variator
6
Parts Diagram
Parts Catalog
Clutch
by
Water pump
Variator
1
2
3
4
5
6
7
7
7
8
9
9
9
10
10
10
11
12
12
13
13
14
1
Fixed pulley
AP8552160
Not Available
2
V-belt
AP8122639
Not Available
3
Washer
AP8552162
Not Available
4
Flanged nut
AP8552143
Not Available
5
Spacer
AP8552164
Not Available
6
Pulley assy., driving
AP8552165
Not Available
7
Pin roller
AP8552166
Not Available
8
Ramp plate
AP8552167
Not Available
9
Slider
AP8552168
Not Available
10
Spacer
AP8552169
Not Available
11
Cover
AP8552170
Not Available
12
Hex socket screw M4x10
AP8121656
Not Available
12
Screw w/ flange
AP8552189
Not Available
13
Washer
AP8552171
Not Available
14
O-ring
AP8552172
Not Available

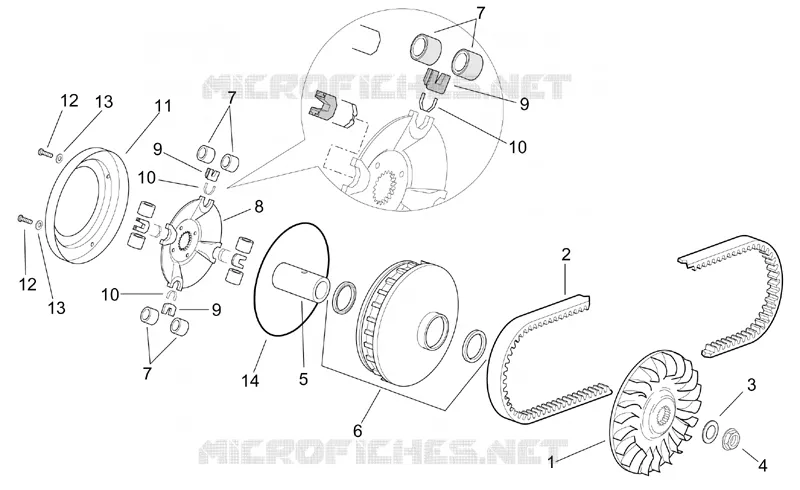

Find the detailed Variator APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.
