Parts Catalog
Water pump
6
Parts Diagram
Parts Catalog
Variator
by
Oil pump
Water pump
1
2
3
3
4
5
5
6
7
8
9
9
10
11
12
1
Water pump assy
AP8552173
Not Available
2
O-ring
AP8552174
Not Available
3
O-ring
AP8552016
Not Available
4
Joint
AP8552176
Not Available
5
Screw M6x16
AP8552177
Not Available
6
Screw w/ flange
AP8552021
Not Available
7
Shaft pin
AP8552179
Not Available
8
Roller D3x21,8
AP8508669
$3,65 Unit Price incl. VAT
9
Blue steel washer D8,2x15x1
AP8206345
$3,65 Unit Price incl. VAT
10
Water pump gear
AP8552180
Not Available
11
Stop ring
AP8552181
Not Available
12
Guide câble tuyau frein
AP8201417
$5,38 Unit Price incl. VAT

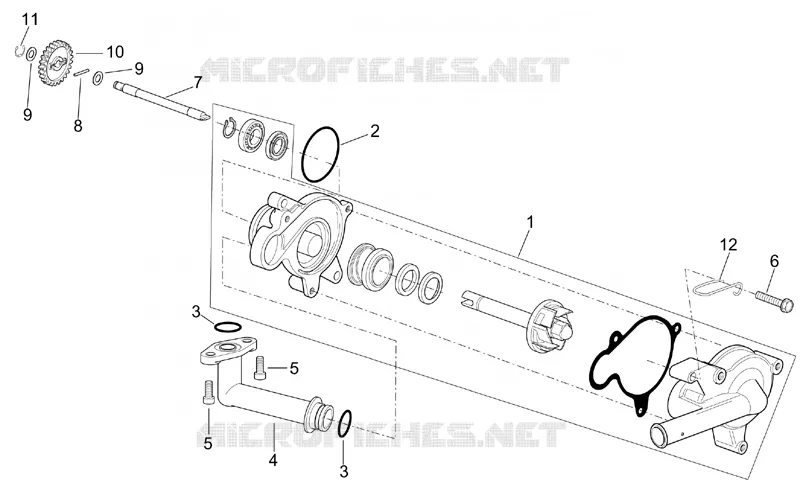

Find the detailed Water pump APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.
