1
Engine displacement
150
2
Model
LEONARDO
3
Year
2004
4
Trim
Leonardo ST
5
Parts Catalog
Pulley assy., driven
6

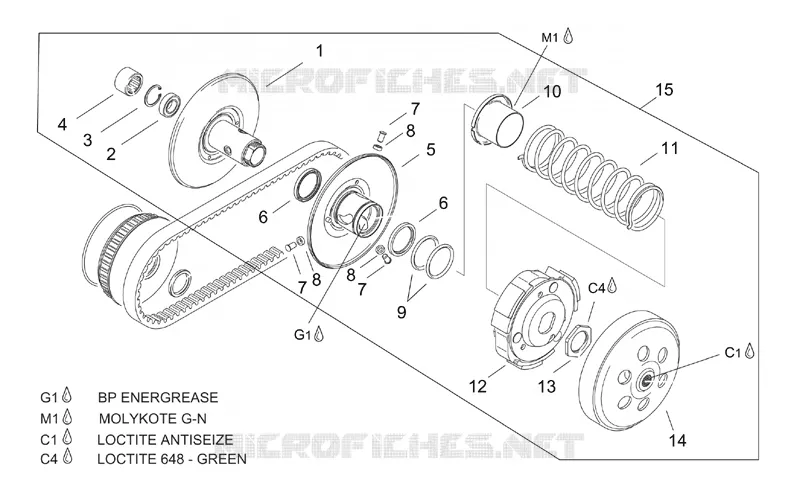

Parts Diagram
Parts Catalog
Primary transm.
by
Sealing and lubricating agents
Pulley assy., driven
1
2
3
4
5
6
6
7
7
7
8
8
8
9
10
11
12
13
14
15
1
Secondary inner pulley
AP0280135
Not Available
2
Ball bearing
AP0632080
Not Available
3
Circlip 28x1,2
AP0245490
Not Available
4
Roller bearing 20x29x18
AP0632090
Not Available
5
Secondary outer pulley
AP0280125
Not Available
6
Oil seal
AP0650290
$24,38 Unit Price incl. VAT
7
Guide pin
AP0229430
Not Available
8
Guide roller
AP0249060
$3,65 Unit Price incl. VAT
9
O-ring
AP0650270
Not Available
10
Spring cap
AP0627165
$53,16 Unit Price incl. VAT
11
Spring
AP0239406
Not Available
12
Clutch cpl.
AP0259739
Not Available
12
Clutch cpl.
AP0259738
Not Available
13
Nut M28x1
AP0242920
Not Available
14
Clutch drum
AP0259662
Not Available
15
Pulley assy., driven
AP0296280
Not Available
15
Pulley assy., driven
AP0296282
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
