Engine displacement
1100
2
Model
TUONO
3
Year
2017
4
Trim
Tuono V4 1100 RR E4 ABS
5
Parts Catalog
Clutch cover
6
Parts Diagram
Parts Catalog
Electrical system II
by
Oil radiator
Clutch cover
28
28
27
27
26
26
25
25
25
25
24
23
23
22
22
21
20
19
18
17
17
16
15
14
13
13
12
12
11
11
10
9
8
7
6
5
4
4
3
3
2
2
2
1
1
1
Couvercle embrayage
1A007270
$330,75 Unit Price incl. VAT
2
Vis bride
857429
$0,34 Unit Price incl. VAT
3
Vis bride
857436
$0,76 Unit Price incl. VAT
4
Spring washer 6,4x11x0,5*
AP8150429
Not Available
5
Goujon
411209
$2,89 Unit Price incl. VAT
6
Joint
857451
$22,83 Unit Price incl. VAT
7
Bouchon
857543
$11,54 Unit Price incl. VAT
8
Bague
857078
$1,26 Unit Price incl. VAT
9
Encoder sensor
832029
Not Available
10
VIS
122675
$2,99 Unit Price incl. VAT
11
BOUCHON
974229
$1,68 Unit Price incl. VAT
12
Joint torique
AP8144424
$3,65 Unit Price incl. VAT
13
Cage à rouleaux
B045225
$6,35 Unit Price incl. VAT
14
Arbre embrayage
2A000033R
$46,26 Unit Price incl. VAT
15
Cage à rouleaux
B045224
$6,35 Unit Price incl. VAT
16
Gasket ring 12x22
857127
Not Available
17
Retour levier démarrage
857461
$5,73 Unit Price incl. VAT
18
Lavier commande chang. vit.
857314
$24,03 Unit Price incl. VAT
19
Vis bride
AP8152279
$0,51 Unit Price incl. VAT
20
Bague
B043542
$73,15 Unit Price incl. VAT
21
Douille en "T"
857460
$1,15 Unit Price incl. VAT
22
Oil dipstick
1A007269
Not Available
23
CIRCLIPS
873233
$0,15 Unit Price incl. VAT
24
Couvercle
1A007414
$122,96 Unit Price incl. VAT
25
Vis
874555
$0,21 Unit Price incl. VAT
26
Vis spéciale
1A009050
$3,65 Unit Price incl. VAT
27
RONDELLE
658830
$4,92 Unit Price incl. VAT
28
Patte
1A006984
$7,23 Unit Price incl. VAT

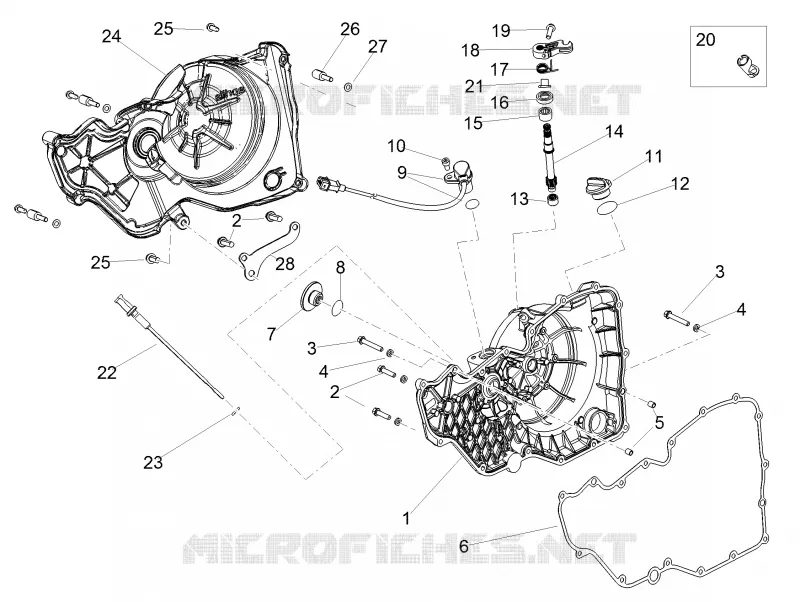

Find the detailed Clutch cover APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
