1
Engine displacement
125
2
Model
LEONARDO
3
Year
2004
4
Trim
Leonardo ST
5
Parts Catalog

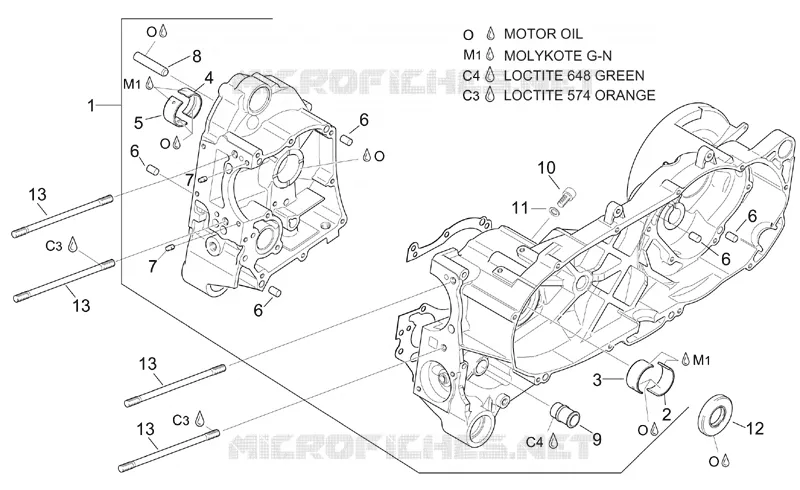

Crankcase
6
Parts Diagram
Parts Catalog
Engine
by
Central semi-crankcase
Crankcase
1
2
3
4
5
6
6
6
7
7
8
9
10
11
12
13
13
13
13
1
Crankcase assy
AP0295931
Not Available
2
Bearing half-shell 32x36x18
AP0233710
Not Available
3
Bearing half-shell 32x36x18
AP0233712
Not Available
4
Bearing half-shell 32x36x18
AP0233715
Not Available
5
Bearing half-shell 32x36x18
AP0233717
Not Available
6
Pin M8x12
AP0632010
Not Available
7
Pin 5x10
AP0929650
Not Available
8
Pin M6x50
AP0229301
Not Available
9
pipe
AP0224265
Not Available
10
Hex socket screw
AP0440193
Not Available
11
Gasket ring 8x13
AP0950141
Not Available
12
Oil seal 25x52x7
AP0831177
Not Available
13
Stud bolt 8x151-12,9
AP0640240
$9,50 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
