Engine displacement
125
2
Model
LEONARDO
3
Year
2003
4
Trim
Leonardo ST
5
Parts Catalog
Valve control
6

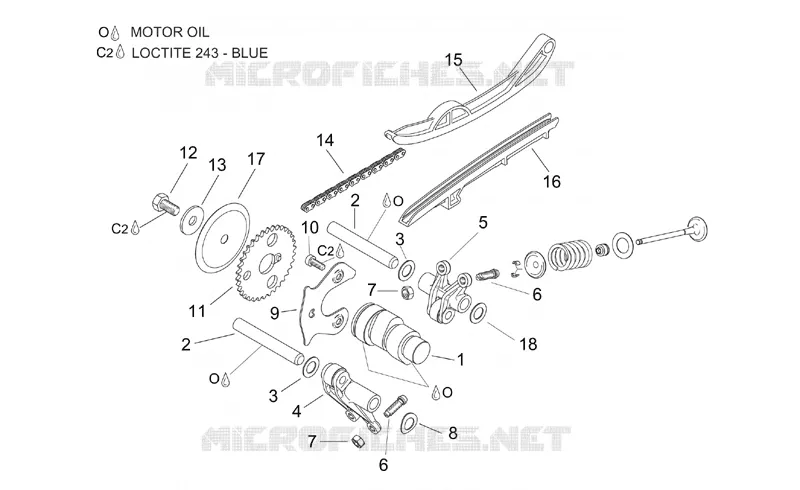

Parts Diagram
Parts Catalog
Crankshaft - valves
by
Cylinder
Valve control
1
2
2
3
3
4
5
6
6
7
7
8
9
10
11
12
13
14
15
16
17
18
1
Camshaft 217°
AP0220314
Not Available
2
Pin 10x75
AP0229410
Not Available
3
Thrust washer 10,1/17/0,5
AP0627100
Not Available
4
Rocker arm assy., exhaust
AP0253877
Not Available
5
Rocker arm assy., inlet
AP0253867
Not Available
6
screw M6x75
AP0241335
Not Available
7
Nut M6x0,75
AP0242910
$3,65 Unit Price incl. VAT
8
Spring washer
AP0627105
$6,60 Unit Price incl. VAT
9
plate
AP0251040
Not Available
10
Hex socket screw
AP0241841
Not Available
11
Gear Z=34
AP0634380
Not Available
12
screw
AP0940580
Not Available
13
Washer 8,4
AP0227937
Not Available
14
Camshaft chain
AP0297930
Not Available
15
Chain guide plate
AP0236270
$46,21 Unit Price incl. VAT
16
Chain guide plate
AP0236280
$49,33 Unit Price incl. VAT
17
Spacer
AP0627320
Not Available
18
Thrust washer 10,1/17/0,5
AP0627100
Not Available
18
Thrust washer 10,1/17/1
AP0827590
$4,82 Unit Price incl. VAT
