1
Engine displacement
750
2
Model
DORSODURO
3
Year
2012
4
Trim
Dorsoduro ABS
5
Parts Catalog
Front wheel
6
Parts Diagram
Parts Catalog
Frame I
by
Exhaust unit
Front wheel
14
13
12
11
11
10
9
8
8
7
6
5
5
4
4
3
2
1
1
Roue AV 3,5''X17'', noire
AP8128228
$550,39 Unit Price incl. VAT
2
Soupape tubeless
AP8101744
$6,30 Unit Price incl. VAT
3
Entretoise interne
AP8128169
$29,51 Unit Price incl. VAT
4
Roulement
AP8125777
$12,81 Unit Price incl. VAT
5
Bague d'étanchéité
AP8125773
$2,58 Unit Price incl. VAT
6
Bague seeger
AP8125779
$3,65 Unit Price incl. VAT
7
Entretoise ext. D roue av.
AP8125728
$7,42 Unit Price incl. VAT
8
Front brake disc
856774
Not Available
9
Rondelle
AP8152323
$3,70 Unit Price incl. VAT
10
Ecrou de roue
AP8152335
$8,12 Unit Price incl. VAT
11
Vis bride
AP8152286
$0,25 Unit Price incl. VAT
12
Front wheel spindle
AP8125827
Not Available
13
Pneu AV DUNLOP SPORTMAX 120/70 ZR17 73W
85156R
$380,03 Unit Price incl. VAT
14
CABLE COMPTEUR
AP8128189
$106,52 Unit Price incl. VAT

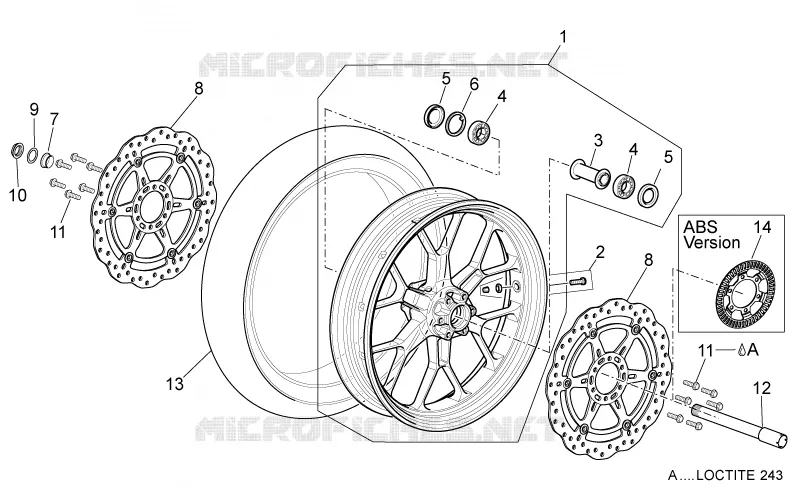

Find the detailed Front wheel APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
