1
Engine displacement
750
2
Model
DORSODURO
3
Year
2012
4
Trim
Dorsoduro ABS
5
Parts Catalog
Handlebar - Controls
6
Parts Diagram
Parts Catalog
Clutch I
by
Handlebar - Controls
23
22
21
20
19
18
17
17
16
16
16
15
14
13
12
11
10
9
8
7
6
6
5
5
4
4
3
2
2
1
1
Handlebar
856902
$238,44 Unit Price incl. VAT
1
Handlebar
B043013
Not Available
2
RH lights selector
977780
Not Available
2
Déviateur feux dte
B045066
$54,27 Unit Price incl. VAT
2
RH lights selector
896063
Not Available
3
LH lights selector
859806
Not Available
4
Term.poids antivib.
AP8121520
$6,73 Unit Price incl. VAT
5
Masse antivibratile guidon
859949
$23,17 Unit Price incl. VAT
6
Vis
AP8150324
$3,65 Unit Price incl. VAT
7
Cavalier sup.
B044863
$97,76 Unit Price incl. VAT
7
Cavalier
851628
$52,07 Unit Price incl. VAT
8
Vis tcc
AP8152486
$4,62 Unit Price incl. VAT
9
Poignée dr.
GU01603480
$39,15 Unit Price incl. VAT
10
Miroir rétroviseur dte
AP8104921
$43,20 Unit Price incl. VAT
11
Miroir rétroviseur gche
AP8104922
$43,20 Unit Price incl. VAT
12
Gas trasmission delivery
856811
Not Available
12
Câble ouverture gaz
898078
$15,75 Unit Price incl. VAT
13
Gas trasmission return
856812
Not Available
13
Gas trasmission return
898079
$26,31 Unit Price incl. VAT
14
Prot-main droite
856855
$25,99 Unit Price incl. VAT
15
LH handguard, black
856856
Not Available
16
Douille
AP8121032
$0,59 Unit Price incl. VAT
17
Entretoise
AP8121080
$3,70 Unit Price incl. VAT
18
Caoutchouc flanc;
AP8144081
$4,62 Unit Price incl. VAT
19
Collier él.
860744
$3,38 Unit Price incl. VAT
20
Poignée gc.
AP8118579
$10,80 Unit Price incl. VAT
21
Vis calotte;
AP8118492
$3,65 Unit Price incl. VAT
22
Cavalier AR. commande gaz;
AP8118567
$14,30 Unit Price incl. VAT
23
Front gas lever U-bolt
AP8118566
Not Available

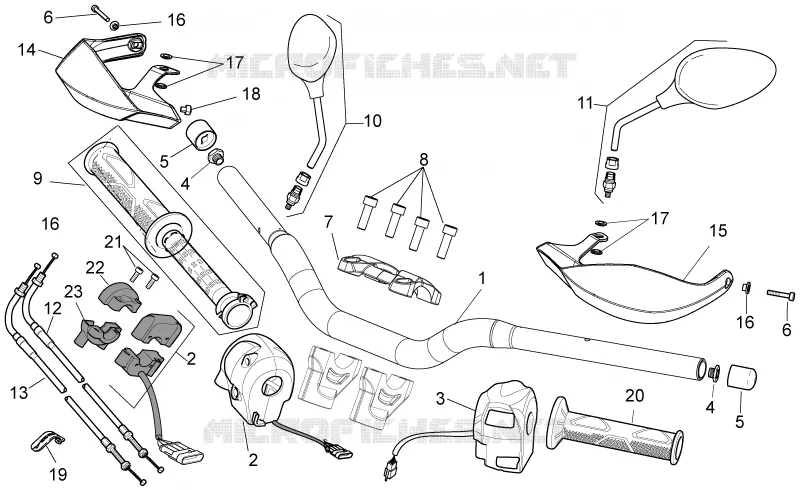

Find the detailed Handlebar - Controls APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
