1
Engine displacement
1100
2
Model
TUONO
3
Year
2019
4
Trim
Tuono V4 1100 RR Euro 4 ABS
5
Parts Catalog
Crank-case I
6
Parts Diagram
Parts Catalog
Front wheel
by
AIR BOX
Crank-case I
1
2
2
2
2
3
4
4
5
5
6
6
6
6
7
7
7
8
9
10
11
12
13
14
14
15
16
16
17
18
18
19
19
20
21
22
23
24
25
26
27
28
28
29
29
30
31
32
32
33
34
35
36
37
38
1
Carter, pair
2A0007875
Not Available
2
Stud bolt m10x126
857087
$4,37 Unit Price incl. VAT
3
Ecrou bridé
897434
$12,54 Unit Price incl. VAT
4
Goupille
857427
$0,27 Unit Price incl. VAT
5
Goujon
411209
$2,89 Unit Price incl. VAT
6
Vis bride
AP9100433
$6,08 Unit Price incl. VAT
7
Vis bride
AP8152294
$7,75 Unit Price incl. VAT
8
Vis bride
AP8152292
$3,65 Unit Price incl. VAT
9
Vis bride
AP8152289
$3,65 Unit Price incl. VAT
10
TUYAU LUBRIFICATION
2A000569
$61,80 Unit Price incl. VAT
11
Bague d'étanchéité
857128
$11,76 Unit Price incl. VAT
12
Roulement
898633
$45,53 Unit Price incl. VAT
13
Vis
AP8152003
$3,70 Unit Price incl. VAT
14
Cage à rouleaux
B045224
$6,35 Unit Price incl. VAT
15
Cage à rouleaux HK1512
857249
$15,55 Unit Price incl. VAT
16
Vis
GU90706009
$3,65 Unit Price incl. VAT
17
Support
857090
$46,51 Unit Price incl. VAT
18
VIS
B046202
$3,65 Unit Price incl. VAT
19
Jet
2A000885
$45,50 Unit Price incl. VAT
20
Bague d'étanchéité
857109
$1,38 Unit Price incl. VAT
21
Vis
AP8150285
$0,34 Unit Price incl. VAT
22
Gasket ring 12x22
857127
Not Available
23
Vis sans tête
2A000295
$6,60 Unit Price incl. VAT
24
Ecrou
857496
$2,50 Unit Price incl. VAT
25
Joint
857144
$2,72 Unit Price incl. VAT
26
Roulement
897436
$25,76 Unit Price incl. VAT
27
Roulement
897435
$20,14 Unit Price incl. VAT
28
Plaq. retien roul.
AP9150145
$14,30 Unit Price incl. VAT
29
Vis FHC
AP8152166
$3,65 Unit Price incl. VAT
30
Rondelle 19x10,5x1,6
857208
$2,22 Unit Price incl. VAT
31
Jet
2A000363
$10,00 Unit Price incl. VAT
32
Joint torique
AP8120965
$3,65 Unit Price incl. VAT
33
Clapet surete
B045126
$40,88 Unit Price incl. VAT
34
VIS
1A003114
$22,46 Unit Price incl. VAT
35
Joint raccord
1A006321
$1,70 Unit Price incl. VAT
36
Raccord
857126
$9,22 Unit Price incl. VAT
37
Screw w/ flange
872117
Not Available
38
Bouchon
974060
$0,48 Unit Price incl. VAT

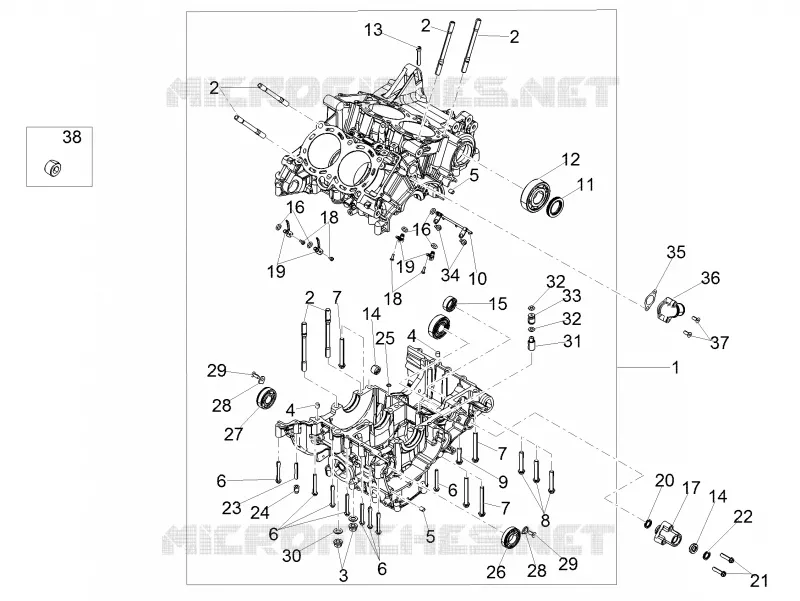

Find the detailed Crank-case I APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.
