Engine displacement
1100
2
Model
TUONO
3
Year
2019
4
Trim
Tuono V4 1100 RR Euro 4 ABS
5
Parts Catalog
REAR CYLINDER TIMING SYSTEM
6
Parts Diagram
Parts Catalog
STAND
by
Headlight
REAR CYLINDER TIMING SYSTEM
1
2
3
4
5
6
7
8
9
9
10
11
12
13
14
1
Exhaust camshaft
8574715
Not Available
2
Intake camshaft
B0444875
Not Available
3
Couronne distribution
857546
$111,83 Unit Price incl. VAT
4
Screw w/ flange M8x10,3
857008
Not Available
5
Chaîne de distribution
897444
$62,72 Unit Price incl. VAT
6
Patin tendeur de chaîne
2A000559
$17,01 Unit Price incl. VAT
7
Special screw M6x18
857476
$3,21 Unit Price incl. VAT
8
Douille
857477
$1,49 Unit Price incl. VAT
9
Galet guide-chaîne
857539
$5,78 Unit Price incl. VAT
10
Vis spéciale M16X1
857094
$3,50 Unit Price incl. VAT
11
Rondelle
857096
$2,01 Unit Price incl. VAT
12
TENDER DE CHAINE DISTRIBUTION
2A000111
$80,31 Unit Price incl. VAT
13
Joint
857176
$4,89 Unit Price incl. VAT
14
Rondelle
B045476
$3,65 Unit Price incl. VAT

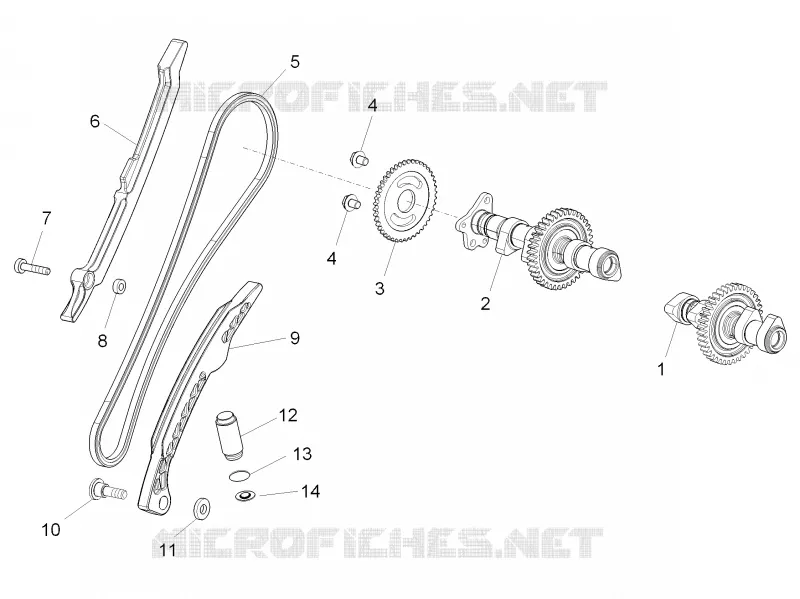

Find the detailed REAR CYLINDER TIMING SYSTEM APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
