Engine displacement
1100
2
Model
TUONO
3
Year
2019
4
Trim
Tuono V4 Factory 1100 Euro 4 Superpole ABS
5
Parts Catalog
STEERING
6
Parts Diagram
Parts Catalog
Engine
by
Electrical system III
STEERING
33
1
2
2
2
3
3
4
5
6
7
8
9
10
11
12
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
1
Plaque inf.
2B003925
$672,13 Unit Price incl. VAT
2
Vis
AP8150236
$0,55 Unit Price incl. VAT
3
Anneau pare-pouss.
AP8123641
$8,12 Unit Price incl. VAT
4
Axial ball bearing
AP8110077
$37,80 Unit Price incl. VAT
5
Vis bride
AP8152287
$0,34 Unit Price incl. VAT
6
Anneau pare-pouss.
AP8123644
$1,01 Unit Price incl. VAT
7
Bague
AP8123642
$10,64 Unit Price incl. VAT
8
Plaq.sécu.direction
AP8121207
$5,38 Unit Price incl. VAT
9
Contre-bague
AP8123643
$10,64 Unit Price incl. VAT
10
Vis
AP8150195
$0,67 Unit Price incl. VAT
11
Vis à arrachement M8x28
AP8152238
$3,65 Unit Price incl. VAT
12
Vis tcc
AP8150540
$5,27 Unit Price incl. VAT
13
Plaque
2B005702
$496,29 Unit Price incl. VAT
14
Rondelle bouchon fourreau
AP8152384
$1,70 Unit Price incl. VAT
15
Douille fx. pl. sup.;
AP8121346
$18,12 Unit Price incl. VAT
16
Cavalier inf. guidon
2B003986
$39,20 Unit Price incl. VAT
17
Cavalier sup. guidon
2B003980
$70,25 Unit Price incl. VAT
18
Vis tcc
AP8150540
$5,27 Unit Price incl. VAT
19
Rondelle
AP8152154
$0,16 Unit Price incl. VAT
20
Passe-câble
B044620
$5,00 Unit Price incl. VAT
21
Douille pour carter disque
AP8121096
$1,70 Unit Price incl. VAT
22
Rondelle
AP8150017
$3,65 Unit Price incl. VAT
23
Vis
AP8152128
$0,34 Unit Price incl. VAT
24
Rondelle
AP8152105
$3,65 Unit Price incl. VAT
25
Amortisseur de direction
2B005520
Not Available
26
"Douille en ""T"""
AP8121811
$3,38 Unit Price incl. VAT
27
Entretoise
2B002151
$15,31 Unit Price incl. VAT
28
Rondelle élastique courbe
AP8150376
$0,08 Unit Price incl. VAT
29
RONDELLE
658830
$4,92 Unit Price incl. VAT
30
Caoutchouc avec insert
AP8120531
$6,30 Unit Price incl. VAT
31
Vis
895915
$3,70 Unit Price incl. VAT
32
Conduit de câbles
2B005695
$20,25 Unit Price incl. VAT
33
Support
2B006134
$1,70 Unit Price incl. VAT

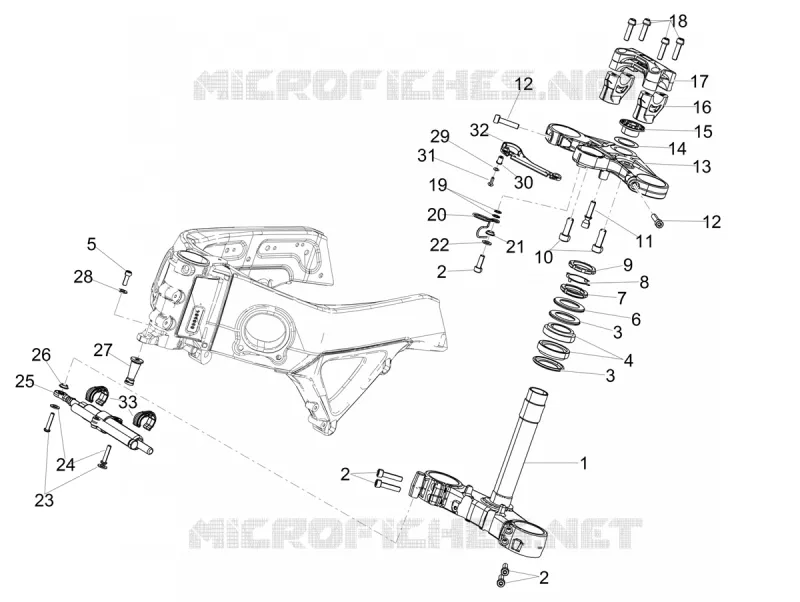

Find the detailed STEERING APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.
