Engine displacement
1100
2
Model
TUONO
3
Year
2019
4
Trim
Tuono V4 Factory 1100 Euro 4 Superpole ABS
5
Parts Catalog
Engine
6
Parts Diagram
Parts Catalog
Electrical system II
by
STEERING
Engine
1
2
2
3
4
4
5
6
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
21
22
23
24
25
1
Vis bride
AP8152277
$0,25 Unit Price incl. VAT
2
Entretoise
2B001932
$3,65 Unit Price incl. VAT
3
Levier boîte de vitesses
852480
$23,84 Unit Price incl. VAT
4
Vis
AP8224470
$0,34 Unit Price incl. VAT
5
Douille
2B002562
$3,70 Unit Price incl. VAT
6
Joint torique
AP8220177
$0,15 Unit Price incl. VAT
7
Sprocket cover
2B003460
Not Available
8
Entretoise
AP8120253
$3,65 Unit Price incl. VAT
9
Vis bride
AP8152279
$0,51 Unit Price incl. VAT
10
Engine cpl.
CM2668035
Not Available
11
Quick shift device
2B002890
$320,61 Unit Price incl. VAT
12
Douille
898134
$8,12 Unit Price incl. VAT
13
Vis FHC
898463
$3,70 Unit Price incl. VAT
14
Tige de commande
2B003382
$57,79 Unit Price incl. VAT
15
Lavier commande chang. vit.
897360
$143,80 Unit Price incl. VAT
16
Tige manette frein
AP8121221
$17,15 Unit Price incl. VAT
17
Caoutchouc pour levier
AP8120912
$1,42 Unit Price incl. VAT
18
Ecrou autofr. bas
AP8150431
$0,34 Unit Price incl. VAT
19
Rondelle élastique courbe
AP8150376
$0,08 Unit Price incl. VAT
20
Rondelle
AP8150020
$0,08 Unit Price incl. VAT
21
Joint torique
AP8144007
$0,81 Unit Price incl. VAT
22
Rear brake lever pin
AP8121223
Not Available
23
Bague seeger
AP8150462
$0,67 Unit Price incl. VAT
24
Guide-chaîne
858923
$5,06 Unit Price incl. VAT
25
COLLIER
2B000276
$3,70 Unit Price incl. VAT

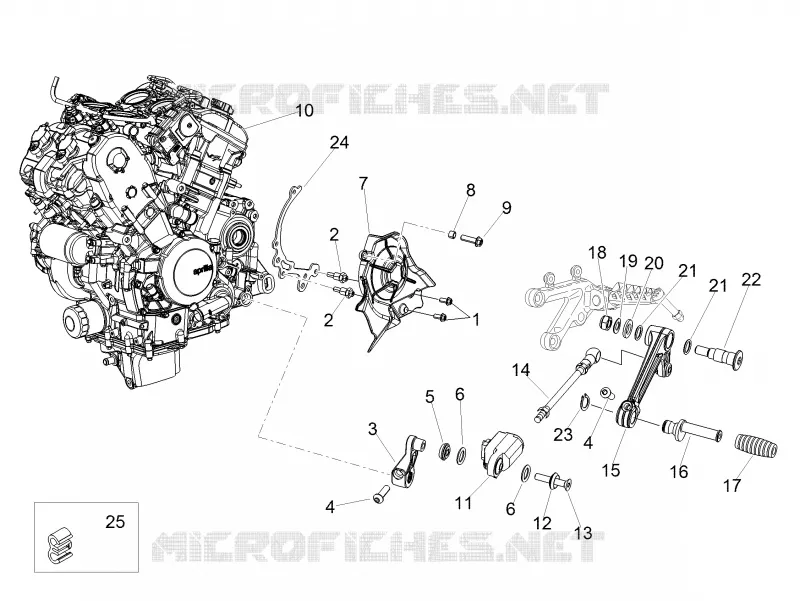

Find the detailed Engine APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.
