1
Engine displacement
1100
2
Model
TUONO
3
Year
2019
4
Trim
Tuono V4 Factory 1100 Euro 4 Superpole ABS
5
Parts Catalog
AIR BOX
6
Parts Diagram
Parts Catalog
SWINGARM
by
FOOTRESTS
AIR BOX
1
2
3
4
5
6
7
8
9
10
11
12
13
14
14
14
15
16
17
18
19
20
21
22
23
24
1
Joint torique
893240
$4,89 Unit Price incl. VAT
2
COLLIER
CM002912
$0,15 Unit Price incl. VAT
3
Spport
890938
$1,81 Unit Price incl. VAT
4
Vis SWP crois. brid.
AP8152329
$0,69 Unit Price incl. VAT
5
Manchon
858880
$3,49 Unit Price incl. VAT
6
Manchon
858932
$3,54 Unit Price incl. VAT
7
Base corps filtre
858931
$15,58 Unit Price incl. VAT
8
Caoutchouc avant latéral;
AP8144087
$5,38 Unit Price incl. VAT
9
Support
895109
$3,82 Unit Price incl. VAT
10
Vis SWP crois. brid.
AP8152329
$0,69 Unit Price incl. VAT
11
Filtre air
AP8104329
$22,91 Unit Price incl. VAT
12
Filtre
894015
$0,93 Unit Price incl. VAT
13
Bouton
895110
$3,82 Unit Price incl. VAT
14
Vis SWP crois. brid.
AP8152329
$0,69 Unit Price incl. VAT
15
COUVERCLE FILTRE AIR
2B003762
$32,28 Unit Price incl. VAT
16
Joint
GU30027931
$5,38 Unit Price incl. VAT
17
Détec.temper.air
GU30729330
$34,55 Unit Price incl. VAT
18
Vis taraud pour plast. Inox
AP8150421
$3,70 Unit Price incl. VAT
19
Tuyau
858808
$52,52 Unit Price incl. VAT
20
Collier serr. Tube
CM001927
$3,38 Unit Price incl. VAT
21
Joint corps filtre
858881
$4,59 Unit Price incl. VAT
22
Petite trompette
896875
$2,92 Unit Price incl. VAT
23
Vis
893132
$1,18 Unit Price incl. VAT
24
Bouchon
895824
$0,58 Unit Price incl. VAT

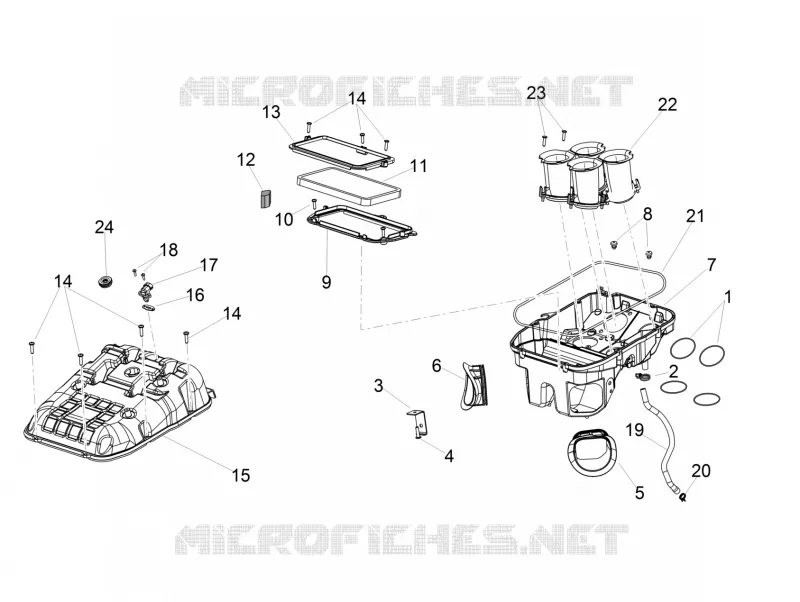

Find the detailed AIR BOX APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
