Engine displacement
1100
2
Model
TUONO
3
Year
2019
4
Trim
Tuono V4 Factory 1100 Euro 4 Superpole ABS
5
Parts Catalog
SWINGARM
6
Parts Diagram
Parts Catalog
Rear master cylinder
by
AIR BOX
SWINGARM
1
2
3
4
5
6
7
8
9
9
10
11
12
13
13
14
14
15
15
16
17
18
19
20
21
22
23
24
24
25
25
26
27
28
28
1
Swing arm
2B001289
Not Available
2
Pivot fourche AR
858707
$174,10 Unit Price incl. VAT
3
Cage à rouleaux
AP8110078
$11,34 Unit Price incl. VAT
4
Roulement
890002
$23,76 Unit Price incl. VAT
5
Douille de réglage
858708
$30,21 Unit Price incl. VAT
6
ECROU DE BRAS DE LA SUSPENSION
648707
$3,78 Unit Price incl. VAT
7
Galet guide-chaîne
858780
$46,81 Unit Price incl. VAT
8
Carter chaîne
858783
$3,29 Unit Price incl. VAT
9
Joint torique
AP8144048
$3,65 Unit Price incl. VAT
10
Vis FHC
AP8150468
$3,65 Unit Price incl. VAT
11
Bague seeger pour orifice
AP8121204
$3,65 Unit Price incl. VAT
12
Bague d'étanchéité
AP8144005
$8,01 Unit Price incl. VAT
13
Rondelle pour patin;
AP8234020
$2,74 Unit Price incl. VAT
14
Regelschr. Leerlauf
2B001920
$6,60 Unit Price incl. VAT
15
Ecrou
2B004511
$0,34 Unit Price incl. VAT
16
"Douille en ""T"""
AP8121075
$3,65 Unit Price incl. VAT
17
Ecrou autofr. bas
AP8150430
$0,16 Unit Price incl. VAT
18
Dou.int.tige fourche
AP8121203
$10,95 Unit Price incl. VAT
19
Rondelle axe roue AR;
AP8125687
$0,42 Unit Price incl. VAT
20
Rear wheel spindle nut
648708
Not Available
21
Patin guide-chaîne g
AP8144443
$19,31 Unit Price incl. VAT
22
Patin guide-chaîne d
AP8144444
$22,29 Unit Price incl. VAT
23
Galet guide-chaîne
858781
$2,30 Unit Price incl. VAT
24
Screw w/ flange M5x12
AP8152302
Not Available
25
Vis à tête bombée à six pans creux
AP8152267
$0,34 Unit Price incl. VAT
26
Entretoise interne
AP8121570
$18,12 Unit Price incl. VAT
27
Vis FHC
AP8150503
$3,65 Unit Price incl. VAT
28
Support;
AP8148824
$5,38 Unit Price incl. VAT

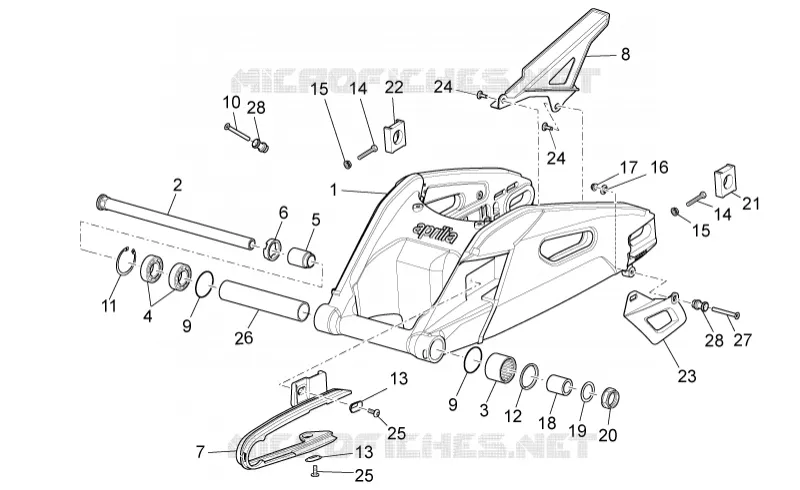

Find the detailed SWINGARM APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.
