Engine displacement
125
2
Model
TUONO
3
Year
2020
4
Trim
Tuono 125 4T Euro 4 ABS
5
Parts Catalog
COOLING SYSTEM
6
Parts Diagram
Parts Catalog
FRONT CYLINDER TIMING SYSTEM
by
THROTTLE BODY
COOLING SYSTEM
26
1
2
3
4
5
5
6
6
6
6
7
8
9
10
11
12
13
13
14
15
16
16
16
17
18
19
19
20
20
21
22
22
23
24
25
1
Tuyau de reniflard
864510
$4,82 Unit Price incl. VAT
2
Tuy.vase exp.rad.
864572
Not Available
3
Réservoir refoidissement
866136
Not Available
4
Bouchon
863943
Not Available
5
COLLIER
00A00410501
Not Available
6
Collier
AP8101573
$3,65 Unit Price incl. VAT
7
Collier serr. Tube
898060
$0,77 Unit Price incl. VAT
8
Water cooler
867334
Not Available
9
Bouchon
861299
Not Available
10
Vis
AP8150044
$3,65 Unit Price incl. VAT
11
Rondelle
AP8150015
$0,16 Unit Price incl. VAT
12
PLAQUETTE
254485
$0,34 Unit Price incl. VAT
13
"Douille en ""T"""
AP8121679
$1,26 Unit Price incl. VAT
14
Vis bride
AP8152281
$1,70 Unit Price incl. VAT
15
PLAQUETTE
254485
$0,34 Unit Price incl. VAT
16
PROTECTEUR TUYAU
00008915020
$0,67 Unit Price incl. VAT
17
Tube pompe radiateur
865655
Not Available
18
Tube de culasse radiateur
865654
Not Available
19
Electro-ventilateur
864049
Not Available
20
RONDELLE
00H03800722
Not Available
21
Tige
AP8161118
$5,38 Unit Price incl. VAT
22
RONDELLE FIXATION COUVRE-CHAIN
00003515370
$3,65 Unit Price incl. VAT
23
Vis
864164
Not Available
24
Vis
00011142500
Not Available
25
Vis bride
AP8152298
$0,21 Unit Price incl. VAT
26
Collier
893224
$1,92 Unit Price incl. VAT

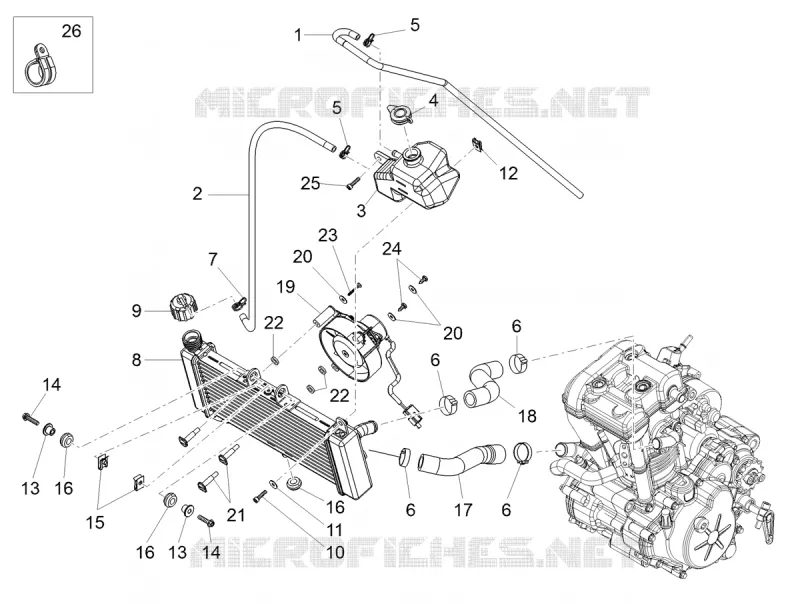

Find the detailed COOLING SYSTEM APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.
