1
Engine displacement
125
2
Model
TUONO
3
Year
2020
4
Trim
Tuono 125 4T Euro 4 ABS
5
Parts Catalog
ENGINE - GEAR LEVER - SPROCKET
6
Parts Diagram
Parts Catalog
STICKERS
by
AIR DUCT

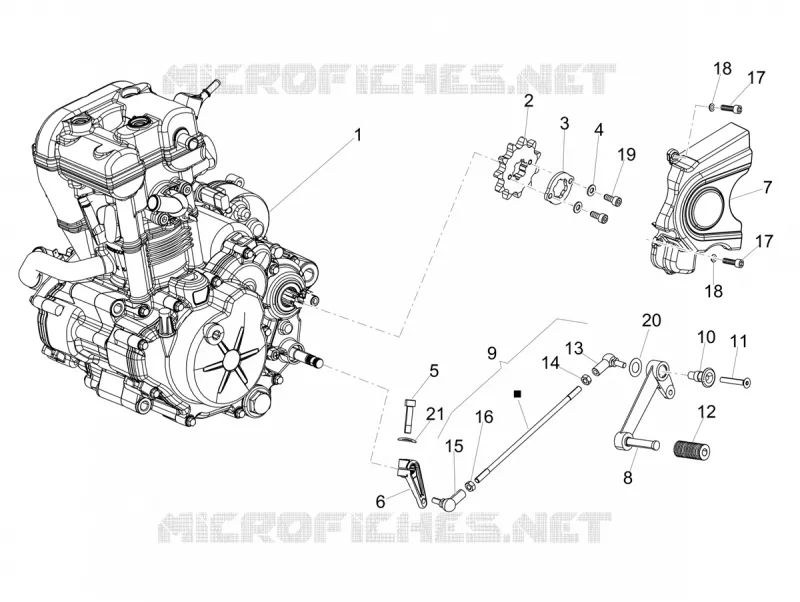

ENGINE - GEAR LEVER - SPROCKET
21
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
17
18
18
19
20
1
Engine cpl.
1U0003035
Not Available
2
Pignon
B044264
$19,85 Unit Price incl. VAT
3
RONDELLE DE SECURITE SBV.
00H02810421
$3,65 Unit Price incl. VAT
4
Rondelle évent.ext.
AP8150284
$5,38 Unit Price incl. VAT
5
Vis
AP8150137
$3,70 Unit Price incl. VAT
6
Levier boîte de vitesses
B043826
$40,12 Unit Price incl. VAT
7
Couvercle carter
898059
$2,01 Unit Price incl. VAT
8
Levier boîte de vitesses;
AP8235011
$27,50 Unit Price incl. VAT
9
Tirant
2B001941
$22,80 Unit Price incl. VAT
10
Douille
866514
Not Available
11
Vis FHC
AP8150468
$3,65 Unit Price incl. VAT
12
Caoutchouc pour levier
AP8120912
$1,42 Unit Price incl. VAT
13
Rotule G
AP8110053
$5,13 Unit Price incl. VAT
14
Ecrou
AP8152138
$0,68 Unit Price incl. VAT
15
Rotule d.te
AP8210007
$5,13 Unit Price incl. VAT
16
Ecrou
AP8150026
$0,16 Unit Price incl. VAT
17
ENTRETOISE
00H01600911
Not Available
18
Vis bride
AP8152273
$0,16 Unit Price incl. VAT
19
VIS A TETE CREUSE 5M80X10
00000004510
$2,95 Unit Price incl. VAT
20
Belleville spring
AP8121697
$3,65 Unit Price incl. VAT
21
RONDELLE
658830
$4,92 Unit Price incl. VAT

Find the detailed ENGINE - GEAR LEVER - SPROCKET APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
