Engine displacement
50
2
Model
SX
3
Year
2020
4
Trim
SX 50 Low Seat Euro 4
5
Parts Catalog
CENTRAL ELECTRICAL SYSTEM
6
Parts Diagram
Parts Catalog
COOLING SYSTEM
by
REAR BRAKE MASTER CYLINDER
CENTRAL ELECTRICAL SYSTEM
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
1
Main wiring harness
2D000393
Not Available
2
Collier, noir
AP8120416
$5,38 Unit Price incl. VAT
2
Collier
AP8120657
$0,34 Unit Price incl. VAT
2
Collier, noir
AP8120422
$3,70 Unit Price incl. VAT
3
Dispositif du démarr. el
CM287903
$518,52 Unit Price incl. VAT
3
Dispositif du démarr. el
CM287910
$98,60 Unit Price incl. VAT
4
KLAXON COMPLET
00H01005311
Not Available
5
Vis bride
AP8152277
$0,25 Unit Price incl. VAT
6
Ecrou autobloqu.
AP8152299
$0,34 Unit Price incl. VAT
7
Pipe bougie
GU03717450
$14,18 Unit Price incl. VAT
8
Bobine H.T.
CM255206
$20,47 Unit Price incl. VAT
9
Vis bride
AP8152274
$0,08 Unit Price incl. VAT
10
ECROU
00G04401462
$1,10 Unit Price incl. VAT
11
CABLE H.T.
080341
$5,89 Unit Price incl. VAT
12
CENTALE CLIGNOTANTE
1D002308
$3,95 Unit Price incl. VAT
13
Caoutchouc p-fusibles
AP8112811
$6,40 Unit Price incl. VAT
14
FUSIBLE
CM225715
$7,23 Unit Price incl. VAT
15
Fusible
CM225707
$7,23 Unit Price incl. VAT
16
BATTERIE 12V/4 AH YUASA YB4L-B
234390
$79,65 Unit Price incl. VAT
16
BATTERIE PTX4L-BS (12V 3Ah)
1L004081
$40,15 Unit Price incl. VAT
16
BATTERIE PB4L-B AVEC ACID (12V 4Ah)
1L004079
$38,93 Unit Price incl. VAT
16
BATTERIE PB4L-B DRY (12V 4Ah)
1L004080
$37,08 Unit Price incl. VAT
17
Breather pipe 4x8
AP8220263
Not Available
18
Gaine
AP8201772
$5,38 Unit Price incl. VAT
19
PROTECTION CONNEXIONS INSTALLA
00H02300961
Not Available
20
Régulateur de tension
641788
$113,03 Unit Price incl. VAT
21
Vis bride M6X16
AP8152278
$1,77 Unit Price incl. VAT
22
Ecrou autobloqu.
AP8152299
$0,34 Unit Price incl. VAT
23
SOUTIEN DES INDICATEURS DE DIRECTION
642317
$0,50 Unit Price incl. VAT
24
Cablage
2D000395
$30,88 Unit Price incl. VAT
25
Capteur vitesse
863307
Not Available
26
VIS
2B002195
$0,59 Unit Price incl. VAT
27
Bague
864826
$1,27 Unit Price incl. VAT
28
RESISTANCE ignition spark plug
485704
Not Available
29
Temperature gauge
640485
Not Available
30
RONDELLE
003056
$0,08 Unit Price incl. VAT
31
VIS
00011061300
$3,65 Unit Price incl. VAT
32
RONDELLE
658830
$4,92 Unit Price incl. VAT
33
Rondelle
AP8150014
$3,70 Unit Price incl. VAT

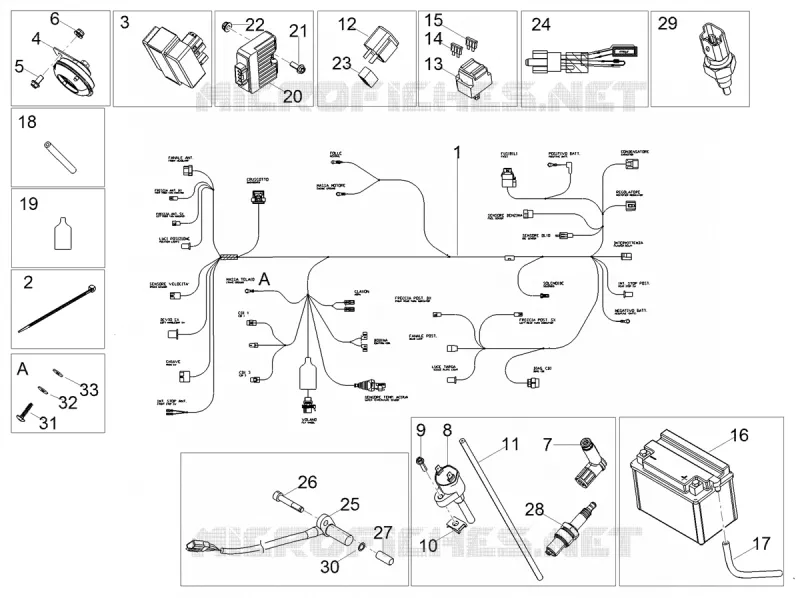

Find the detailed CENTRAL ELECTRICAL SYSTEM APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.
