1
Engine displacement
50
2
Model
SX
3
Year
2020
4
Trim
SX 50 Low Seat Euro 4
5
Parts Catalog
Front fork
6
Parts Diagram
Parts Catalog
SHOCK ABSORBER
by
FRONT WHEEL
Front fork
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
16
16
16
17
18
19
20
21
22
23
23
1
Fourche complète
2B005997
$481,10 Unit Price incl. VAT
2
VIS
00004184500
$17,53 Unit Price incl. VAT
3
Vis
866586
$2,31 Unit Price incl. VAT
4
Rondelle
866587
$1,48 Unit Price incl. VAT
5
Protection D.
2B004861
$317,67 Unit Price incl. VAT
6
Protection G.
2B004862
$300,92 Unit Price incl. VAT
7
Joint spi
866592
$30,49 Unit Price incl. VAT
8
Bague de butée
866591
$0,77 Unit Price incl. VAT
9
Pare-poussière
866590
$30,94 Unit Price incl. VAT
10
TUBO PRINCIPAL
866593
$46,33 Unit Price incl. VAT
11
Bague
866588
$6,02 Unit Price incl. VAT
12
Pompage
866597
$17,19 Unit Price incl. VAT
13
Ressort
866596
$22,40 Unit Price incl. VAT
14
Joint torique
866584
$1,05 Unit Price incl. VAT
15
Bouchon
866583
$13,25 Unit Price incl. VAT
16
Vis
866582
$1,76 Unit Price incl. VAT
17
Plaque
2B004860
$102,83 Unit Price incl. VAT
18
Plaque
2B004859
$78,90 Unit Price incl. VAT
19
Écrou
866578
$5,23 Unit Price incl. VAT
20
Pare-poussière
866577
$1,53 Unit Price incl. VAT
21
Pontet
2B004858
$12,48 Unit Price incl. VAT
22
Vis
866582
$1,76 Unit Price incl. VAT
23
Catadioptre
664045
$11,22 Unit Price incl. VAT

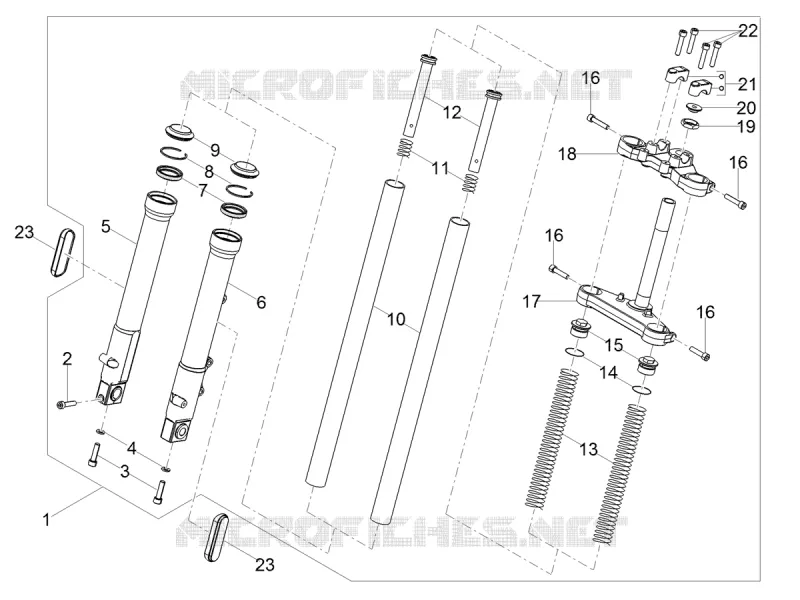

Find the detailed Front fork APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
