1
Engine displacement
1100
2
Model
RSV4
3
Year
2019
4
Trim
RSV4 1100 Racing Factory Euro 4 ABS
5
Parts Catalog
FLYWHEEL COVER
6
Parts Diagram
Parts Catalog
CLUTCH COVER
by
TAIL LIGHTS
FLYWHEEL COVER
1
2
3
4
5
6
7
8
8
9
9
9
10
10
11
11
11
12
13
14
15
16
1
Vis bride
AP8152272
$0,08 Unit Price incl. VAT
2
Plaquette
B046004
$5,38 Unit Price incl. VAT
3
COUVERCLE
2A000466
$249,60 Unit Price incl. VAT
4
Bague d'étanchéité
898268
$3,80 Unit Price incl. VAT
5
Joint
857176
$4,89 Unit Price incl. VAT
6
Raccord
85746200XNB
$56,87 Unit Price incl. VAT
7
VIS
857048
$3,70 Unit Price incl. VAT
8
VIS
871094
$0,76 Unit Price incl. VAT
9
Rondelle plate
2A000034
$3,65 Unit Price incl. VAT
10
Screw w/ flange
872117
Not Available
11
Vis spéciale
1A009050
$3,65 Unit Price incl. VAT
12
Vis
874555
$0,21 Unit Price incl. VAT
13
Goujon
411209
$2,89 Unit Price incl. VAT
14
Rondelle
898269
$1,01 Unit Price incl. VAT
15
CIRCLIPS S00663000
006630
$3,65 Unit Price incl. VAT
16
Couvercle
1A007415
$30,74 Unit Price incl. VAT

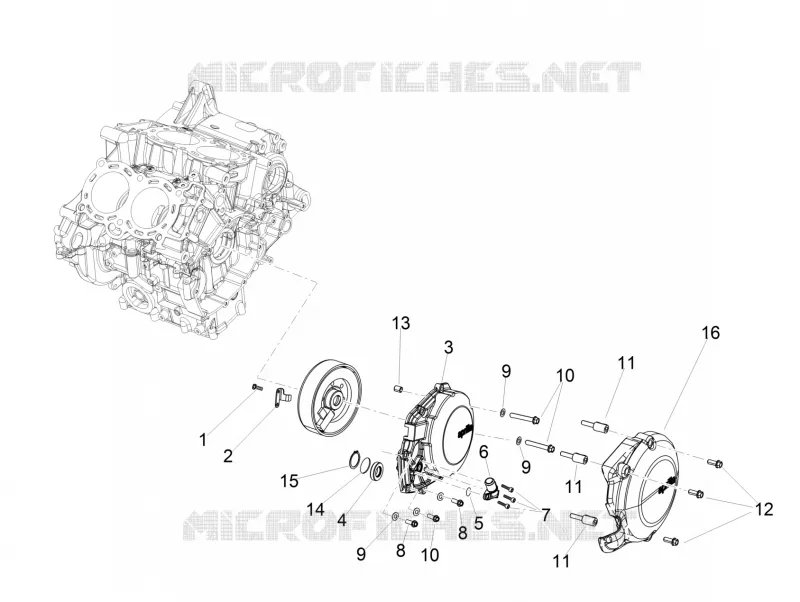

Find the detailed FLYWHEEL COVER APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
