1
Engine displacement
1100
2
Model
RSV4
3
Year
2019
4
Trim
RSV4 1100 Racing Factory Euro 4 ABS
5
Parts Catalog
FUEL TANK
6
Parts Diagram
Parts Catalog
REAR MUDGUARD
by
SIDE FAIRINGS
FUEL TANK
1
2
3
3
4
4
5
6
7
8
9
10
11
12
13
14
15
15
15
16
16
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
1
Réservoir ess.p.noir/gris
2H002904900Z1
Not Available
2
Axe de fixation
AP8161127
$5,38 Unit Price incl. VAT
3
VIS
576836
$3,03 Unit Price incl. VAT
4
Entretoise
893273
$2,35 Unit Price incl. VAT
5
Caoutchouc
AP8120663
$9,24 Unit Price incl. VAT
6
Vis bride
AP8152273
$0,16 Unit Price incl. VAT
7
Support Flanc G
858886
$2,10 Unit Price incl. VAT
8
Fuel pump cpl.
B043925
Not Available
9
VITE TBEI M5 X 10
AP8150538
$4,32 Unit Price incl. VAT
10
Clip
AP8102375
$0,69 Unit Price incl. VAT
11
Vis
AP8150505
$3,65 Unit Price incl. VAT
12
Rondelle
AP8150255
$0,16 Unit Price incl. VAT
13
Bouchon essence
B043929
$394,24 Unit Price incl. VAT
14
Vis
B043864
$4,82 Unit Price incl. VAT
15
Caoutchouc
AP8220366
$4,62 Unit Price incl. VAT
16
Caoutchouc;
AP8144158
$2,18 Unit Price incl. VAT
17
Rondelle nylon
AP8144565
$3,65 Unit Price incl. VAT
18
Tuyau essence
858884
$33,77 Unit Price incl. VAT
19
Tuyau purge réser.
895959
$3,59 Unit Price incl. VAT
20
Missing description
2D000385
$768,49 Unit Price incl. VAT
21
Détecteur
899068
$171,58 Unit Price incl. VAT
22
Support
B044550
$10,76 Unit Price incl. VAT
23
Vis bride
AP8152339
$3,65 Unit Price incl. VAT
24
Joint bouchon essence
AP8104803
$23,36 Unit Price incl. VAT
25
Vis
AP8224470
$0,34 Unit Price incl. VAT
26
Caoutchouc avec insert
2B001203
$10,00 Unit Price incl. VAT
27
Joint torique
AP8120965
$3,65 Unit Price incl. VAT
28
Protection brûlure
894198
$11,03 Unit Price incl. VAT
29
Ecrou autobloqu.
AP8152299
$0,34 Unit Price incl. VAT
30
Rondelle 6,4x13x1,5
GU95005306
$0,16 Unit Price incl. VAT
31
Vis
GU98210612
$3,65 Unit Price incl. VAT
32
Patte
2B002985
$20,60 Unit Price incl. VAT

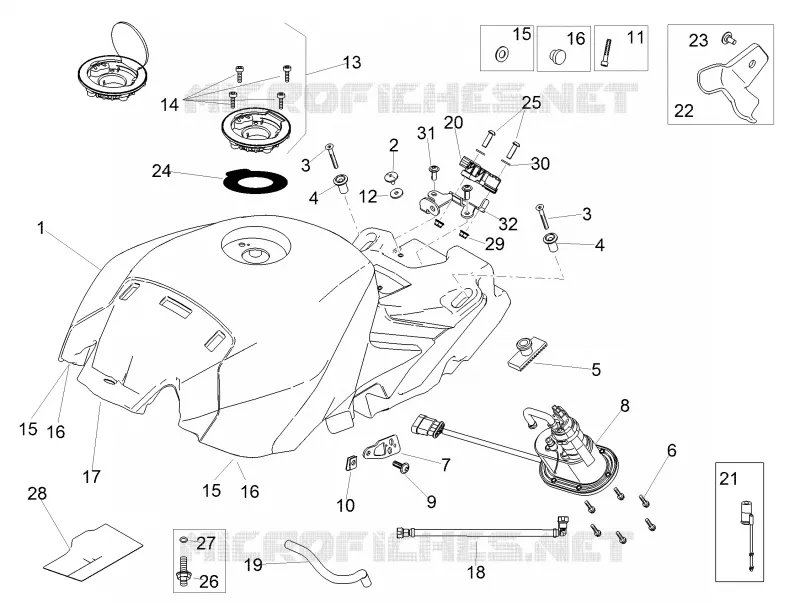

Find the detailed FUEL TANK APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
