1
Engine displacement
125
2
Model
RS
3
Year
2022
4
Trim
RS 125 4T Euro 5 ABS
5
Parts Catalog
CRANKCASES I
6

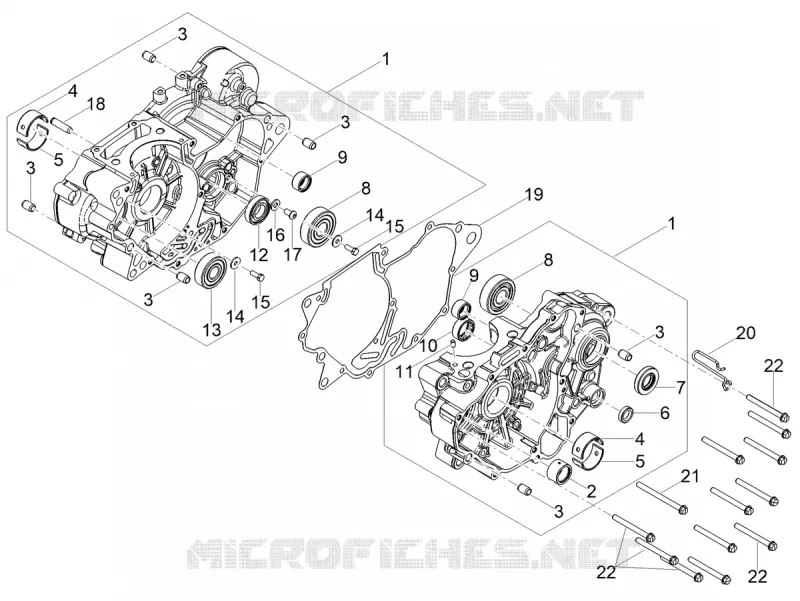

Parts Diagram
Parts Catalog
FRONT LIGHTS
by
GEARBOX
CRANKCASES I
1
1
2
3
3
3
3
3
3
4
4
5
5
6
7
8
8
9
9
10
11
12
13
14
14
15
15
16
17
18
19
20
21
22
22
22
1
Carter complet 1e cat.
1A01909901
$556,82 Unit Price incl. VAT
1
Carter complet 2e cat.
1A01909902
$547,73 Unit Price incl. VAT
2
Roller cage
177442
$4,04 Unit Price incl. VAT
3
Pin 6,5x9,5x15
239388
Not Available
4
Demi-coquille de coussinet cat. a rouge
8580170R
$18,60 Unit Price incl. VAT
4
Demi-coquille de coussinet cat. b bleu
8580170B
$16,07 Unit Price incl. VAT
5
Demi-coquille de coussinet cat. a rouge
8580180R
$18,60 Unit Price incl. VAT
5
Demi-coquille de coussinet cat. b bleu
8580180B
$18,60 Unit Price incl. VAT
6
Oil seal 12x20
847075
$1,49 Unit Price incl. VAT
7
Oil seal
847019
$1,63 Unit Price incl. VAT
8
Bearing
82668R
$11,34 Unit Price incl. VAT
9
Roller cage
182015
$5,31 Unit Price incl. VAT
10
Roller cage
898628
$6,65 Unit Price incl. VAT
11
Locating dowel
484993
$0,16 Unit Price incl. VAT
12
Bearing
898627
$9,37 Unit Price incl. VAT
13
Radial ball bearing 15x42x13
485912
Not Available
14
Washer 5,2X15X1,5
224664
$1,26 Unit Price incl. VAT
15
screw M5x14
031057
$0,08 Unit Price incl. VAT
16
Flat washer
006125
$0,16 Unit Price incl. VAT
17
Hex socket screw M6x12
274369
$0,17 Unit Price incl. VAT
18
Shaft pin
847076
$0,67 Unit Price incl. VAT
19
Gasket
873086
$9,74 Unit Price incl. VAT
20
Hose clamp
873735
$1,48 Unit Price incl. VAT
21
Screw w/ flange M6x75
828922
$0,38 Unit Price incl. VAT
22
Screw w/ flange M6x60
B016425
$1,01 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
