1
Engine displacement
125
2
Model
RS
3
Year
2022
4
Trim
RS 125 4T Euro 5 ABS
5
Parts Catalog

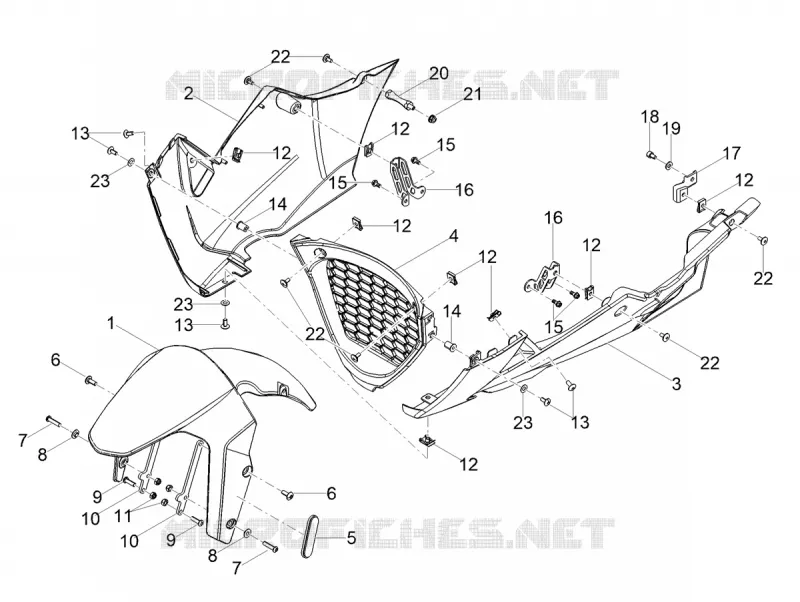

FRONT FENDER - LOWER FAIRING
6
Parts Diagram
Parts Catalog
FRONT BRAKE MASTER CYLINDER
by
TANK COVER
FRONT FENDER - LOWER FAIRING
1
2
3
4
5
6
6
7
7
8
8
9
9
10
10
11
12
12
12
12
12
12
12
13
13
13
14
14
15
15
15
16
16
17
18
19
20
21
22
22
22
22
23
23
23
1
Front splash guard black
897700
$7,21 Unit Price incl. VAT
2
Black right lower fairing
89768800XN3
$56,87 Unit Price incl. VAT
2
Carénage inférieur droit
897688
$13,80 Unit Price incl. VAT
3
Black left lower fairing
89768900XN3
$56,87 Unit Price incl. VAT
3
Carénage inférieur gauche
897689
$13,08 Unit Price incl. VAT
4
Pillar
858827
$9,03 Unit Price incl. VAT
5
Reflector, amber
AP8224623
$7,23 Unit Price incl. VAT
6
screw
00H01501701
Not Available
7
screw
00H01503701
Not Available
8
Bush
AP8121032
$0,59 Unit Price incl. VAT
9
Hex socket screw M6x20
AP8152137
$0,23 Unit Price incl. VAT
10
Front splash guard support
867258
$4,11 Unit Price incl. VAT
11
Low self-locking nut M6
AP8150115
$13,79 Unit Price incl. VAT
12
Clip M5
AP8102375
$0,69 Unit Price incl. VAT
13
Hex socket screw Black M5x12
896174
$0,34 Unit Price incl. VAT
14
Rubber w/ insert
AP8120531
$6,30 Unit Price incl. VAT
15
Screw w/ flange M5x12
AP8152272
$0,08 Unit Price incl. VAT
16
Fairing support
899071
$3,25 Unit Price incl. VAT
17
Fairing fixing plate
866012
Not Available
18
Hex socket screw M6x10
319446
$0,17 Unit Price incl. VAT
19
Washer 6,4x15x1
AP8152181
$0,07 Unit Price incl. VAT
20
Spacer
890964
$7,82 Unit Price incl. VAT
21
Self-locking nut M6
AP8152299
$0,34 Unit Price incl. VAT
22
Hex socket screw M5x9
AP8150500
$1,53 Unit Price incl. VAT
23
Front dust cover ring
AP8120622
$3,65 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
