1
Engine displacement
1100
2
Model
TUONO
3
Year
2023
4
Trim
Tuono V4 1100 Euro 5
5
Parts Catalog
Frame/bodywork
6

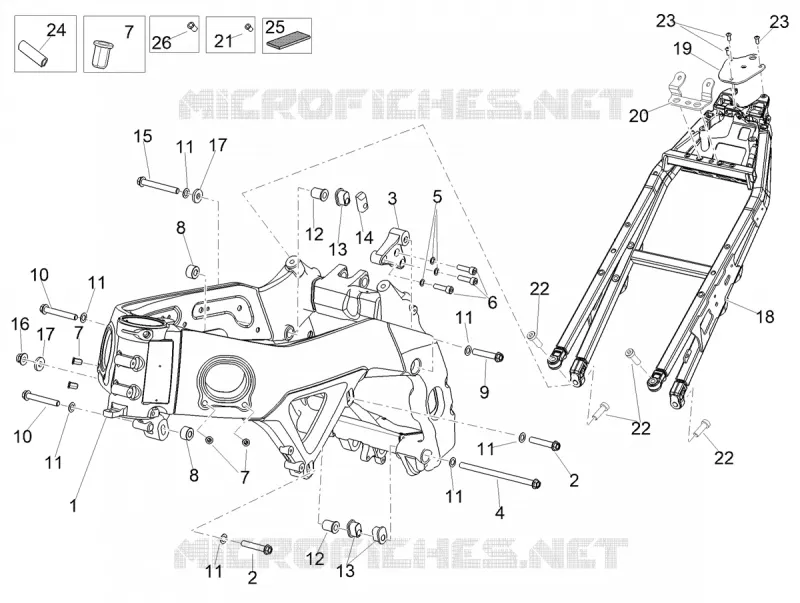

Parts Diagram
Parts Catalog
SHOCK ABSORBER
by
FOOTRESTS
Frame/bodywork
26
25
24
23
23
22
22
22
21
20
19
18
17
17
16
15
14
13
13
12
12
11
11
11
11
11
11
11
10
10
9
8
8
7
7
7
6
5
4
3
2
2
1
1
Chassis
2B0075085
$2 959,95 Unit Price incl. VAT
2
Screw w/ flange
598838
$1,46 Unit Price incl. VAT
3
Engine support pos. 0
898429
$22,44 Unit Price incl. VAT
4
Pin
858712
$53,35 Unit Price incl. VAT
5
Washer 8,4x13*
AP8152154
$0,16 Unit Price incl. VAT
6
Hex socket screw M8x30
AP8150107
$3,65 Unit Price incl. VAT
7
Hex threaded insert
AP8102902
$3,65 Unit Price incl. VAT
8
RH spacer
858718
$3,81 Unit Price incl. VAT
9
Screw w/ flange M10x55
AP8152410
$3,65 Unit Price incl. VAT
10
Hex screw FLANG.M 10
895845
$6,70 Unit Price incl. VAT
11
Curved spring washer *
AP8150292
$0,34 Unit Price incl. VAT
12
Bush
858710
$5,23 Unit Price incl. VAT
13
Rear Insert pos. 0
898427
$12,33 Unit Price incl. VAT
14
M10 insert pos. 0
898428
$69,57 Unit Price incl. VAT
15
Screw w/ flange M10x80
AP8152398
$3,65 Unit Price incl. VAT
16
Self-locking nut
AP8152301
$0,59 Unit Price incl. VAT
17
Washer 10,5x25x4
AP8152441
$3,65 Unit Price incl. VAT
18
Accroche-selle
2B007177
Not Available
19
Bride de support de selle
2B009086
$17,47 Unit Price incl. VAT
20
Plaque de support selle
2B008129
$3,66 Unit Price incl. VAT
21
Threaded rivet
AP8104390
$3,38 Unit Price incl. VAT
22
Hex socket screw M10x30
AP8150469
$3,65 Unit Price incl. VAT
23
Hex socket screw
AP8152174
$3,65 Unit Price incl. VAT
24
Gasket
AP8144707
$5,38 Unit Price incl. VAT
25
Adhesive sponge
AP8117033
$5,38 Unit Price incl. VAT
26
Threaded rivet M6
AP8102544
$5,23 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
