1
Engine displacement
1100
2
Model
TUONO
3
Year
2023
4
Trim
Tuono V4 1100 Euro 5
5
Parts Catalog

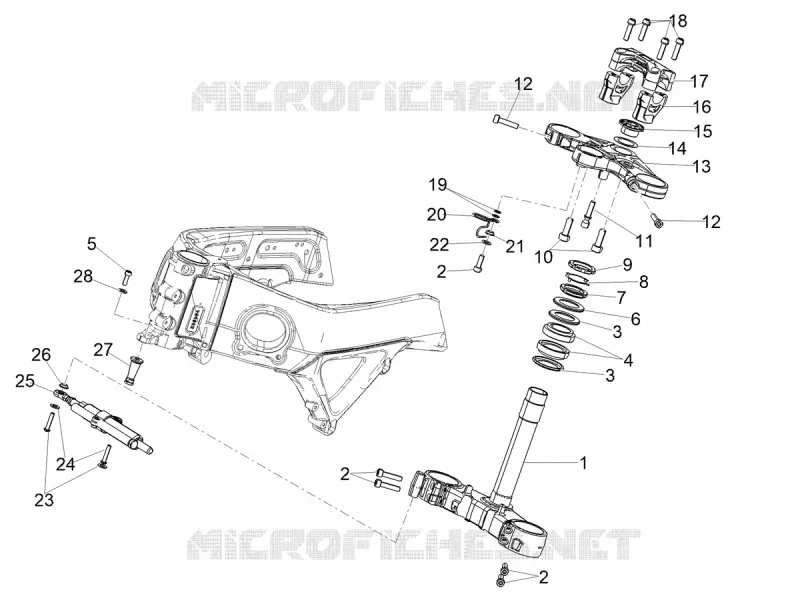

STEERING
6
Parts Diagram
Parts Catalog
ABS BRAKE SYSTEM
by
REAR CYLINDER TIMING SYSTEM
STEERING
28
27
26
25
24
23
22
20
19
18
17
13
12
12
11
10
9
8
7
6
5
4
3
3
2
2
2
1
21
16
15
14
1
Fork lower plate
2B003927
$672,13 Unit Price incl. VAT
2
Hex socket screw M8x35
AP8150236
$0,55 Unit Price incl. VAT
3
Dust cover ring
AP8123641
$8,12 Unit Price incl. VAT
4
Axial ball bearing
AP8110077
$37,80 Unit Price incl. VAT
5
Screw w/ flange M8x25
AP8152287
$0,34 Unit Price incl. VAT
6
Dust cover ring
AP8123644
$1,01 Unit Price incl. VAT
7
Ring nut
AP8123642
$10,64 Unit Price incl. VAT
8
Steering security plate
AP8121207
$5,38 Unit Price incl. VAT
9
Return ring nut
AP8123643
$10,64 Unit Price incl. VAT
10
Hex socket screw M10x30
AP8150195
$0,67 Unit Price incl. VAT
11
Shear rivet M8x28
AP8152238
$3,65 Unit Price incl. VAT
12
Screw
AP8150540
$5,27 Unit Price incl. VAT
13
Plaque supérieure de fourche
2B005702
$496,29 Unit Price incl. VAT
14
Stem plug washer
AP8152384
$1,70 Unit Price incl. VAT
15
Upper plate fixing bush
AP8121346
$18,12 Unit Price incl. VAT
16
Cavalier inf.
2B008405
$79,95 Unit Price incl. VAT
17
Upper U-bolt
2B003980
$70,25 Unit Price incl. VAT
18
Screw
AP8150540
$5,27 Unit Price incl. VAT
19
Washer 8,4x13*
AP8152154
$0,16 Unit Price incl. VAT
20
Fairlead
B044620
$5,00 Unit Price incl. VAT
21
T bush 8,2x12x4
AP8121096
$1,70 Unit Price incl. VAT
22
Washer 8,4x16x1,6
AP8150017
$3,65 Unit Price incl. VAT
23
Hex socket screw M6x30
AP8152128
$0,34 Unit Price incl. VAT
24
Washer 6,4x10x,7*
AP8152105
$3,65 Unit Price incl. VAT
25
Amortisseur de direction
2B008933
$238,66 Unit Price incl. VAT
26
T bush
AP8121811
$3,38 Unit Price incl. VAT
27
Spacer
2B002151
$15,31 Unit Price incl. VAT
28
Washer 8,5x15x0,8
AP8150376
$0,08 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
