1
Engine displacement
1100
2
Model
TUONO
3
Year
2021
4
Trim
Tuono V4 Factory 1100 Euro 5 Superpole ABS
5
Parts Catalog
CYLINDER HEAD - VALVES
6
Parts Diagram
Parts Catalog
Cylinder head cover
by
PAD

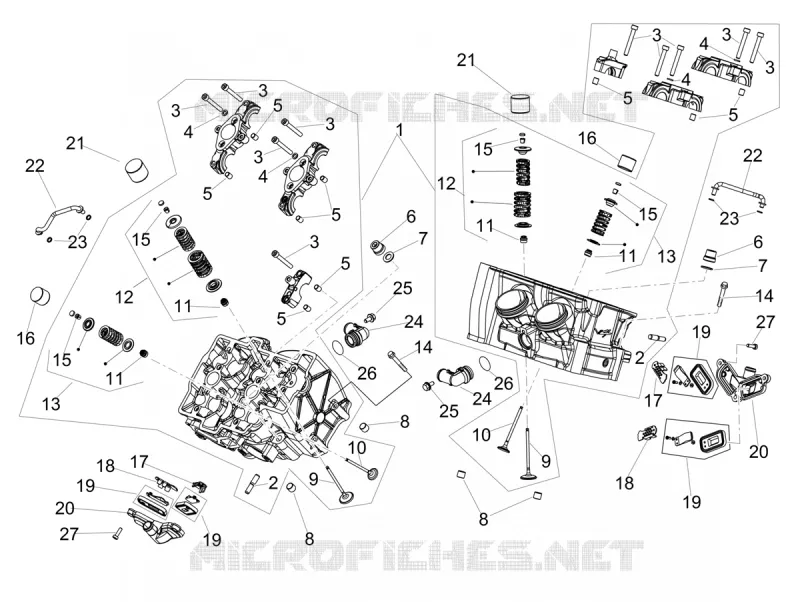

CYLINDER HEAD - VALVES
27
27
26
26
25
25
24
24
23
23
22
22
21
20
19
19
19
19
19
18
17
17
16
15
15
15
14
13
13
12
12
11
11
11
11
10
10
9
9
8
8
8
7
7
6
6
5
5
5
5
5
5
5
4
4
4
4
3
3
3
3
3
3
3
3
2
2
1
21
20
18
16
15
1
Cylinder head assy.
8986822
$1 712,50 Unit Price incl. VAT
2
Stud bolt m10x171
857035
$1,44 Unit Price incl. VAT
3
Hex socket screw M6x45
857085
$0,53 Unit Price incl. VAT
4
Copper washer
857042
$1,31 Unit Price incl. VAT
5
Pin
411209
$2,89 Unit Price incl. VAT
6
Flanged nut M10x1
897434
$12,54 Unit Price incl. VAT
7
Washer 19 x 10,5 x 1,6
857208
$2,22 Unit Price incl. VAT
8
Pin 11,8X10
825597
$0,94 Unit Price incl. VAT
9
Valve, in
857018
$29,63 Unit Price incl. VAT
10
Exaust valve
2A000546
$118,35 Unit Price incl. VAT
11
Valve gasket ring
436438
$1,34 Unit Price incl. VAT
12
Intake valve spring kit
2R000041
$51,45 Unit Price incl. VAT
13
Exhaust valve spring kit
2R000042
$39,00 Unit Price incl. VAT
14
Screw w/ flange
478895
$0,50 Unit Price incl. VAT
15
Valve half-cone
857024
$3,03 Unit Price incl. VAT
16
Valve lifter bucket
857067
$43,68 Unit Price incl. VAT
17
Spark arrester
857046
$4,89 Unit Price incl. VAT
18
Spark arrester
857047
$2,77 Unit Price incl. VAT
19
Reed valve
857045
$19,14 Unit Price incl. VAT
20
Cover reed valve
857044
$29,48 Unit Price incl. VAT
21
Suction valve bucket tappet
2A000337
$70,70 Unit Price incl. VAT
22
Oil sprayer pipe
857017
$38,17 Unit Price incl. VAT
23
O-ring
873097
$1,51 Unit Price incl. VAT
24
Angular union
857016
Not Available
25
Flanged hexagon screw
1A003153
$3,65 Unit Price incl. VAT
26
O-ring
857083
$0,84 Unit Price incl. VAT
27
screw M5x16
857048
$3,70 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
