1
Engine displacement
1100
2
Model
TUONO
3
Year
2021
4
Trim
Tuono V4 Factory 1100 Euro 5 Superpole ABS
5
Parts Catalog

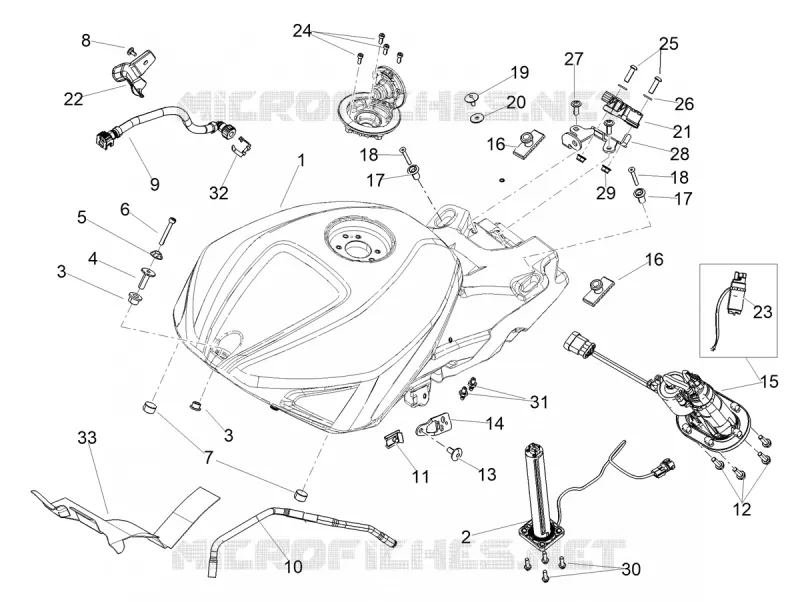

FUEL TANK
6
Parts Diagram
Parts Catalog
TAIL LIGHTS
by
FUEL EVAP SYSTEM
FUEL TANK
32
31
30
29
26
25
24
23
22
18
17
16
16
15
14
13
12
11
10
9
8
7
6
5
4
3
3
1
1
33
28
27
21
20
19
18
2
1
Réservoir noir
2H005085000XN5
Not Available
1
Réservoir noir
2H004601000XN2
$1 536,87 Unit Price incl. VAT
2
Sonde niveau essence
2D000634
Not Available
3
Silent-block
AP8101372
$4,62 Unit Price incl. VAT
4
Description manquante
2B006465
$10,42 Unit Price incl. VAT
5
Special washer
AP8150536
$10,76 Unit Price incl. VAT
6
Hex socket screw M6x45
AP8150403
$0,68 Unit Price incl. VAT
7
Tampon
2B007824
$5,48 Unit Price incl. VAT
8
Screw w/ flange M5x9
AP8152339
$3,65 Unit Price incl. VAT
9
Tuyau essence
2B007450
$30,60 Unit Price incl. VAT
10
Breather pipe
895959
$3,59 Unit Price incl. VAT
11
Clip M5
AP8102375
$0,69 Unit Price incl. VAT
12
Screw w/ flange M5x15
AP8152273
$0,16 Unit Price incl. VAT
13
Hex socket screw M5x10
AP8150538
$4,32 Unit Price incl. VAT
14
LH support
858886
$2,10 Unit Price incl. VAT
15
Fuel pump cpl.
B043925
Not Available
16
Rubber spacer *
AP8120663
$9,24 Unit Price incl. VAT
17
Spacer
893273
$2,35 Unit Price incl. VAT
18
screw
576836
$3,03 Unit Price incl. VAT
19
Fixing pin
AP8161127
$5,38 Unit Price incl. VAT
20
Washer 5x20x1,5
AP8150255
$0,16 Unit Price incl. VAT
21
Détec. inclinaison
2D000517
$779,87 Unit Price incl. VAT
22
Maintenance
B044550
$10,76 Unit Price incl. VAT
23
Fuel level sensor
899068
$171,58 Unit Price incl. VAT
24
Hex socket screw M5x14
B043864
$4,82 Unit Price incl. VAT
25
Hex socket screw M6x20
AP8224470
$0,34 Unit Price incl. VAT
26
Washer 6,4x13x1,5
GU95005306
$0,16 Unit Price incl. VAT
27
Screw w/ flange M6x12
GU98210612
$3,65 Unit Price incl. VAT
28
Support bracket
2B002985
$20,60 Unit Price incl. VAT
29
Self-locking nut M6
AP8152299
$0,34 Unit Price incl. VAT
30
M6x20 pre-coated hex head screw
2B004560
$0,34 Unit Price incl. VAT
31
Insert
2B001203
$10,00 Unit Price incl. VAT
32
Bride
2B007735
$2,49 Unit Price incl. VAT
33
Protection
2B008438
$14,68 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
