1
Engine displacement
660
2
Model
RS
3
Year
2023
4
Trim
RS 660 Extrema 4T 8V E5 ABS
5
Parts Catalog

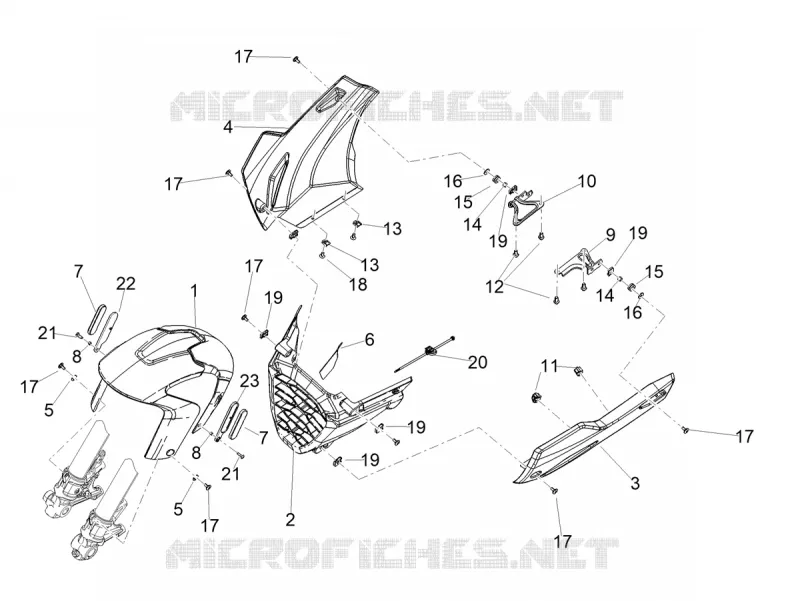

FRONT FENDER - LOWER FAIRING
6
Parts Diagram
Parts Catalog
SWINGARM
by
SIDE FAIRINGS
FRONT FENDER - LOWER FAIRING
1
2
3
4
5
5
6
7
7
8
8
9
10
11
12
13
13
14
14
15
15
16
16
17
17
17
17
17
17
17
18
19
19
19
19
19
20
21
21
22
23
1
Front mudguard
2S001815
$641,68 Unit Price incl. VAT
2
Butée carénage
2B006625
$41,29 Unit Price incl. VAT
3
Carénage inférieur gauche
2B011209
$464,25 Unit Price incl. VAT
4
Carénage inférieur droit
2B011208
$464,25 Unit Price incl. VAT
5
Washer 8,5x15x0,8
AP8150376
$0,08 Unit Price incl. VAT
6
Protection
2B008296
$13,09 Unit Price incl. VAT
7
Reflector, amber
AP8224623
$7,23 Unit Price incl. VAT
8
Spacer
AP8120253
$3,65 Unit Price incl. VAT
9
Bride gauche
2B005547
$13,92 Unit Price incl. VAT
10
Bride droite
2B005548
$13,92 Unit Price incl. VAT
11
Sheet edge spring
CM013203
$0,67 Unit Price incl. VAT
12
Screw w/ flange M5x12
AP8152272
$0,08 Unit Price incl. VAT
13
Nut D5
00G04401462
$1,10 Unit Price incl. VAT
14
Bushing 5,3x8x7,1
AP8221036
$0,27 Unit Price incl. VAT
15
Rubber spacer
AP8120030
$0,85 Unit Price incl. VAT
16
Washer 6,6x18x1,6
841821
$0,37 Unit Price incl. VAT
17
Hex socket screw M5x9
AP8150500
$1,53 Unit Price incl. VAT
18
Hex socket screw M5x12
896175
$1,30 Unit Price incl. VAT
19
Clip M5
AP8102375
$0,69 Unit Price incl. VAT
20
Collier
1D002265
$0,69 Unit Price incl. VAT
21
Vis TBEI pré-enduite M5x20
2B003307
$3,65 Unit Price incl. VAT
22
Support catadioptre d.
2B011441
$3,16 Unit Price incl. VAT
23
Support catadioptre g.
2B011442
$3,16 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
