1
Engine displacement
660
2
Model
RS
3
Year
2023
4
Trim
RS 660 Extrema 4T 8V E5 ABS
5
Parts Catalog
FOOTRESTS
6

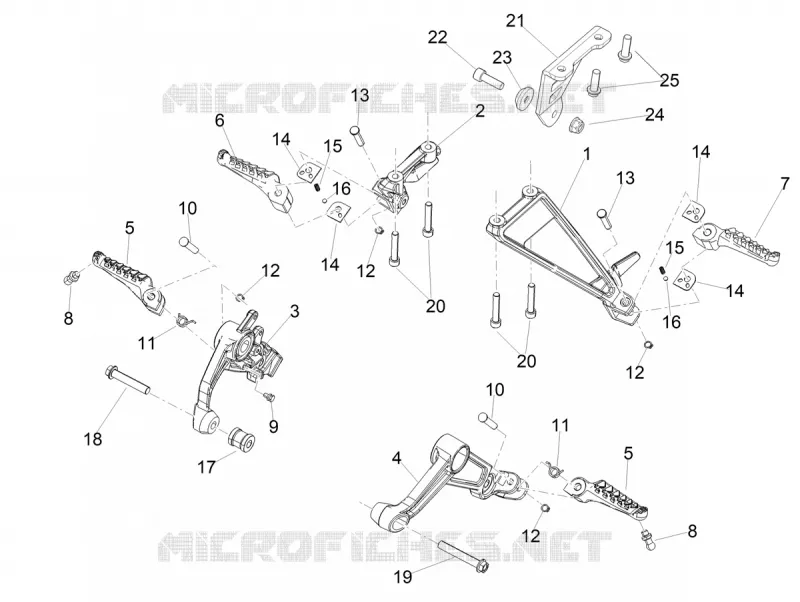

Parts Diagram
Parts Catalog
by
STAND
FOOTRESTS
1
2
3
4
4
5
5
6
7
8
8
9
10
10
11
11
12
12
12
12
13
13
14
14
14
14
15
15
16
16
17
18
19
20
20
21
22
23
24
25
1
Support r-p. G pass.
2B010850
$210,36 Unit Price incl. VAT
2
Support r-p. pass.dr.
2B010851
$210,36 Unit Price incl. VAT
3
Sup.pl.pilote dte
2B005203
$104,15 Unit Price incl. VAT
4
Sup.pl.pilote gche
2B005202
$104,15 Unit Price incl. VAT
5
Front footrest, pair
AP8146862
Not Available
6
Rear footrest, RH
AP8146405
Not Available
7
Rear footrest, LH
AP8146406
Not Available
8
Pin
GU30441005
$14,30 Unit Price incl. VAT
9
Fixing pin
859946
$4,89 Unit Price incl. VAT
10
Pin
AP8121567
$5,38 Unit Price incl. VAT
11
Footrest return spring
AP8121224
$1,35 Unit Price incl. VAT
12
Stop ring
AP8152409
$3,65 Unit Price incl. VAT
13
Footrest pin
AP8121566
$5,38 Unit Price incl. VAT
14
Footrest plate
AP8134451
$2,56 Unit Price incl. VAT
15
Coil compress. spring
AP8121133
$0,53 Unit Price incl. VAT
16
Ball D6,35
AP8101861
$0,10 Unit Price incl. VAT
17
Douille entretoise
2B006346
$6,44 Unit Price incl. VAT
18
Screw w/ flange M10x55
AP8152410
$3,65 Unit Price incl. VAT
19
Hex screw FLANG.M 10
895845
$6,70 Unit Price incl. VAT
20
Hex socket screw M8x45
AP8150164
$3,65 Unit Price incl. VAT
21
Support pot d'échappement
2B011580
Not Available
22
Hex socket screw M8x25
AP8150170
$0,27 Unit Price incl. VAT
23
Silencer fixing bush
AP8134378
$3,70 Unit Price incl. VAT
24
Self-locking nut M8
AP8152300
$0,34 Unit Price incl. VAT
25
Screw w/ flange M8x25
AP8152287
$0,34 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
