Engine displacement
850
2
Model
NA-MANA
3
Year
2016
4
Trim
NA Mana GT
5
Parts Catalog
Transmission III
6
Parts Diagram
Parts Catalog
ABS Brake system
by
Frame
Transmission III
21
20
19
18
17
16
15
14
13
12
12
11
10
9
8
7
6
6
5
4
3
2
1
1
Aluminium clutch drum
842917
$79,58 Unit Price incl. VAT
2
Centrifugal clutch assy
8425645
$239,74 Unit Price incl. VAT
3
Ring nut
831618
$3,20 Unit Price incl. VAT
4
Bearing
831615
$18,36 Unit Price incl. VAT
5
Snap ring
831619
$1,39 Unit Price incl. VAT
6
Gasket ring
831623
Not Available
7
New cup type
831195
$1,49 Unit Price incl. VAT
8
O-ring
831920
$1,39 Unit Price incl. VAT
9
Spring
831196
Not Available
10
O-ring
831921
$1,53 Unit Price incl. VAT
11
Cup
833051
$5,35 Unit Price incl. VAT
12
Pin
845367
$2,10 Unit Price incl. VAT
13
Gasket ring
844806
$1,34 Unit Price incl. VAT
14
Roller cage
874572
$34,85 Unit Price incl. VAT
15
Spacer
830380
$27,55 Unit Price incl. VAT
16
Gasket ring
825023
$9,60 Unit Price incl. VAT
17
Driven mobile half-pulley
843750
$178,89 Unit Price incl. VAT
18
V-belt
845010
$122,22 Unit Price incl. VAT
19
Fixed half-pulley
849892
$244,56 Unit Price incl. VAT
20
Flat washer
833052
$0,48 Unit Price incl. VAT
21
Nut M18x1,5
829232
$2,31 Unit Price incl. VAT

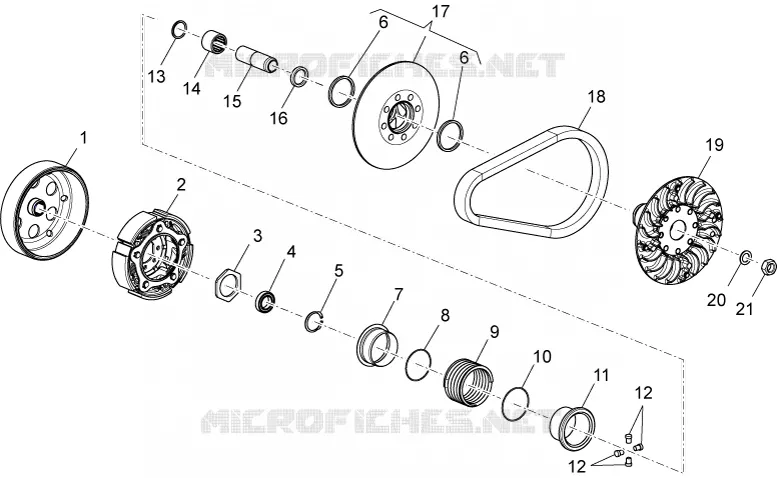

Find the detailed Transmission III APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.
