1
Engine displacement
660
2
Model
TUONO
3
Year
2022
4
Trim
Tuono 660 4T 8V E5 Factory ABS
5
Parts Catalog
Front body
6
Parts Diagram
Parts Catalog
STICKERS
by
WATERPUMP

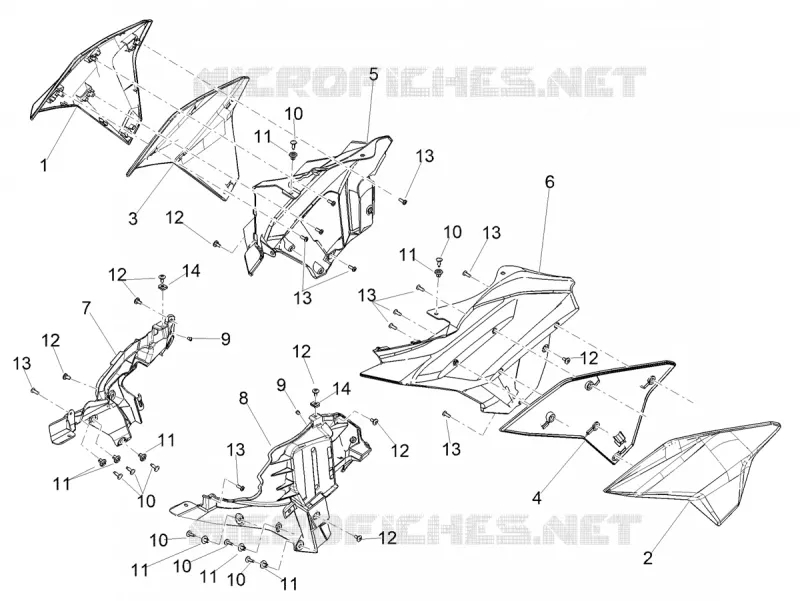

Front body
1
1
1
2
2
2
3
4
5
5
5
5
6
6
6
6
7
8
9
9
10
10
10
10
10
10
11
11
11
11
11
11
11
12
12
12
12
12
12
12
13
13
13
13
13
13
13
14
14
1
Carène latérale d.
2B008045
$240,98 Unit Price incl. VAT
1
Carène latérale D noir
2B008045000XN5
$159,05 Unit Price incl. VAT
1
Carène lat. D, rouge fl.
2B008045000XR4
$211,82 Unit Price incl. VAT
2
Carène latérale g.
2B008044
$240,98 Unit Price incl. VAT
2
Carène latérale G noir
2B008044000XN5
$159,05 Unit Price incl. VAT
2
Carène lat. G, rouge fl.
2B008044000XR4
$211,82 Unit Price incl. VAT
3
Fermeture carénage d
2B008047
$24,07 Unit Price incl. VAT
4
Fermeture carénage g
2B008046
$78,61 Unit Price incl. VAT
5
RH int.fairing, grey
2B008043000XHG
$219,61 Unit Price incl. VAT
5
Carénage int. D, noir
2B008043000XNM
$176,08 Unit Price incl. VAT
5
Carénage int. D
2B008043
$78,61 Unit Price incl. VAT
5
Carénage int. D, noir
2B008043000XN2
$206,92 Unit Price incl. VAT
6
Carénage int. G
2B008042
$54,10 Unit Price incl. VAT
6
LH int.fairing, grey
2B008042000XHG
$219,61 Unit Price incl. VAT
6
Carénage int. G, noir
2B008042000XN2
$206,92 Unit Price incl. VAT
6
Carénage int. G, noir
2B008042000XNM
$176,08 Unit Price incl. VAT
7
Intérieur carénage d
2B008032
$25,19 Unit Price incl. VAT
8
Intérieur carénage g
2B008031
$25,19 Unit Price incl. VAT
9
Mushroom rubber
AP8220488
$4,92 Unit Price incl. VAT
10
Rivet, male
AP8144563
$0,32 Unit Price incl. VAT
11
Rivet, female
AP8144616
$0,23 Unit Price incl. VAT
12
Hex socket screw M5x9
AP8150500
$1,53 Unit Price incl. VAT
13
Self-tap screw 5x14
AP8150509
$0,51 Unit Price incl. VAT
14
Nut D5
00G04401462
$1,10 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
