1
Engine displacement
660
2
Model
TUONO
3
Year
2022
4
Trim
Tuono 660 4T 8V E5 Factory ABS
5
Parts Catalog
STICKERS
6

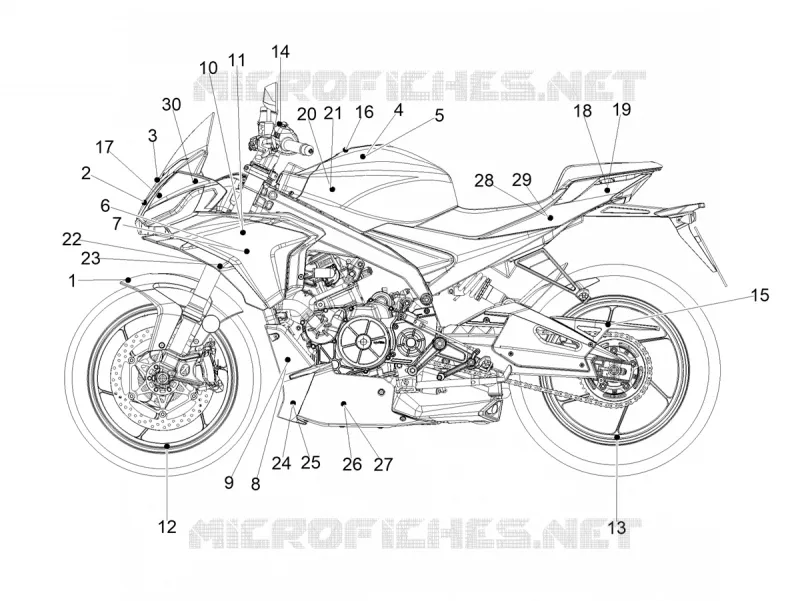

Parts Diagram
Parts Catalog
FRONT FAIRING
by
Front body
STICKERS
1
2
2
3
4
4
4
5
5
5
6
6
6
7
7
7
8
9
10
10
10
11
11
11
12
13
14
15
16
17
18
18
19
19
20
21
22
22
23
23
24
25
26
27
28
29
30
30
1
Décalco garde-boue AV "be a racer"
2H003453
$10,00 Unit Price incl. VAT
2
Autocollant ker porte-numéro frontal carénage
2H005436
$9,55 Unit Price incl. VAT
2
Autocollant ker porte-numéro frontal carénage
2H005116
$11,50 Unit Price incl. VAT
3
Decalco chiusura frontale cupolino
2H005117
$5,72 Unit Price incl. VAT
4
Décalco réservoir dte "aprilia racing"
2H006228
$11,33 Unit Price incl. VAT
4
Décalco réservoir dte "aprilia racing"
2H005118
$7,00 Unit Price incl. VAT
4
Décalco réservoir dte "aprilia racing"
2H005734
$12,71 Unit Price incl. VAT
5
Décalco réservoir gche "aprilia racing"
2H005735
$12,71 Unit Price incl. VAT
5
Décalco réservoir gche "aprilia racing"
2H006229
$11,33 Unit Price incl. VAT
5
Décalco réservoir gche "aprilia racing"
2H005119
$7,00 Unit Price incl. VAT
6
Sticker carénage latéral D "A"
2H005740
$8,27 Unit Price incl. VAT
6
Sticker carénage lat. D. "RED"
2H005120
$5,44 Unit Price incl. VAT
6
Sticker carénage lat. D. "A"
2H006230
Not Available
7
Sticker carénage lat. G. "A"
2H006231
$8,75 Unit Price incl. VAT
7
Sticker carénage latéral G "A"
2H005741
$8,27 Unit Price incl. VAT
7
Sticker carénage lat. G. "RED"
2H005121
$5,44 Unit Price incl. VAT
8
Sticker carénage inférieur D "RED"
2H005122
$4,78 Unit Price incl. VAT
9
Sticker carénage inférieur G "RED"
2H005123
$4,78 Unit Price incl. VAT
10
Sticker bandes carénage lat. D.
2H006232
Not Available
10
Sticker bande G.
2H005742
$9,22 Unit Price incl. VAT
10
Sticker carénage lat. D. "TUONO 660 FACTORY"
2H005124
$7,67 Unit Price incl. VAT
11
Sticker bande G.
2H005743
$9,22 Unit Price incl. VAT
11
Sticker carénage lat. G. "TUONO 660 FACTORY"
2H005125
$7,67 Unit Price incl. VAT
11
Sticker bande G.
2H006233
Not Available
12
Right wheel decal
2H005126
$3,50 Unit Price incl. VAT
13
Left wheel decal
2H005127
$3,50 Unit Price incl. VAT
14
"Aprilia" dataplate
AP8157770
$6,44 Unit Price incl. VAT
15
Decalco pressione pneumatici/tensione catena
2B008140
$1,39 Unit Price incl. VAT
16
Decal 54 World Titles
2H000874
$4,82 Unit Price incl. VAT
17
Dècalco avant carène D
2H005437
$4,44 Unit Price incl. VAT
18
Passenger saddle cover decal right RED
2H005453
$3,16 Unit Price incl. VAT
18
Autocollant porte-numéro pour bavette D
2H006234
Not Available
19
Passenger seat cover sticker on the left RED
2H005454
$3,16 Unit Price incl. VAT
19
Autocollant porte-numéro pour bavette G
2H006235
Not Available
20
Bande autocollante D pour réservoir
2H005736
$6,67 Unit Price incl. VAT
21
Bande autocollante G pour réservoir
2H005737
$7,01 Unit Price incl. VAT
22
Sticker bande G.
2H005738
$6,41 Unit Price incl. VAT
23
Sticker bande G.
2H005739
$6,41 Unit Price incl. VAT
24
Sticker embout carénage D
2H005744
$4,44 Unit Price incl. VAT
25
Sticker embout carénage G
2H005745
$4,44 Unit Price incl. VAT
26
Sticker carénage inférieur D
2H005746
$7,65 Unit Price incl. VAT
27
Sticker carénage inférieur G
2H005747
$7,65 Unit Price incl. VAT
28
Autocollant porte-numéro pour bavette D
2H005748
$10,80 Unit Price incl. VAT
29
Autocollant porte-numéro pour bavette G
2H005749
$10,80 Unit Price incl. VAT
30
Decalco frontale carena dx "TUONO 660"
2H004228
$5,05 Unit Price incl. VAT
30
Decalco frontale carena dx "TUONO 660"
2H006227
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
